Spur Gear - Pressure Angle 20 ° Module 3.0 Shape K/B -Key Hole + Screw Hole- CFAKB/CFAKBB/CFAKBG/CFAKS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spur Gear - Pressure Angle 20 ° Module 3.0 Shape K/B -Key Hole + Screw Hole- CFAKB3.0-12-30-B-8N
Part number	CFAKB3.0-12-30-B-8N

CAD models

Product selection

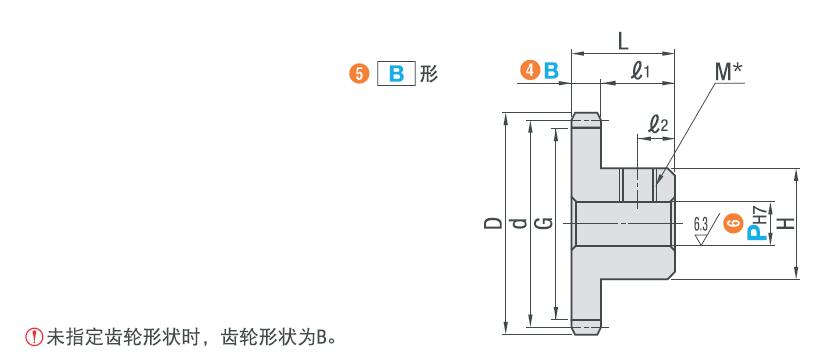

Index	Selector	Teeth Number	B	Modulus	Shape	d	D	G	H	L	l1	l2	M
1	1	12	30	3.0	B	36	42	28.5	27	48	18	9	M4
2	2	14	30	3.0	B	42	48	34.5	32	48	18	9	M4
3	3	15	30	3.0	B	45	51	37.5	35	48	18	9	M4
4	4	16	30	3.0	B	48	54	41.5	40	48	18	9	M4
5	18	18	30	3.0	B	54	60	46.5	44	48	18	9	M4
6	19	19	30	3.0	B	57	63	49.5	45	48	18	9	M4
7	5	20	30	3.0	B	60	66	52.5	50	48	18	9	M4
8	6	22	30	3.0	B	66	72	58.5	54	48	18	9	M4
9	7	24	30	3.0	B	72	78	64.5	58	48	18	9	M5
10	8	25	30	3.0	B	75	81	67.5	60	48	18	9	M5
11	9	26	30	3.0	B	78	84	70.5	65	48	18	9	M5
12	10	28	30	3.0	B	84	90	76.5	70	48	18	9	M5
13	11	30	30	3.0	B	90	96	82.5	75	48	18	9	M5
14	12	32	30	3.0	B	96	102	88.5	75	48	18	9	M5
15	13	34	30	3.0	B	102	108	94.5	80	48	18	9	M5
16	14	35	30	3.0	B	105	111	97.5	80	48	18	9	M5
17	20	36	30	3.0	B	108	114	100.5	80	48	18	9	M5
18	21	40	30	3.0	B	120	126	112.5	85	48	18	9	M5
19	15	42	30	3.0	B	126	132	118.5	85	48	18	9	M5
20	22	45	30	3.0	B	135	141	127.5	85	48	18	9	M5
21	16	48	30	3.0	B	144	150	136.5	85	48	18	9	M5
22	17	50	30	3.0	B	150	156	142.5	85	48	18	9	M6

Material and Treatment

Machining Stop Screw Hole

Change Screw Hole

Cut Hub
