Spur Gear - Pressure Angle 20 ° Module 2.5 Shape K/B -Key Hole + Screw Hole- CFAKB/CFAKBB

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spur Gear - Pressure Angle 20 ° Module 2.5 Shape K/B -Key Hole + Screw Hole- CFAKB2.5-12-25-B-8N
Part number	CFAKB2.5-12-25-B-8N

CAD models

Product selection

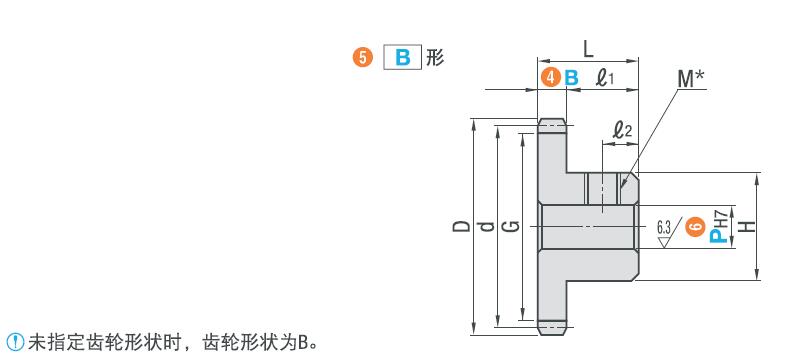

Index	Selector	Teeth Number	B	Modulus	Shape	d	D	G	H	L	l1	l2	M
1	1	12	25	2.5	B	30	35	23.75	23	37	12	6	M4
2	2	14	25	2.5	B	35	40	28.75	25	41	16	8	M4
3	3	15	25	2.5	B	37.5	42.5	31.25	30	41	16	8	M4
4	4	16	25	2.5	B	40	45	33.75	32	41	16	8	M4
5	19	18	25	2.5	B	45	50	38.75	38	41	16	8	M4
6	20	19	25	2.5	B	47.5	52.5	41.25	39	41	16	8	M4
7	5	20	25	2.5	B	50	55	43.75	40	41	16	8	M4
8	6	22	25	2.5	B	55	60	48.75	44	41	16	8	M4
9	7	24	25	2.5	B	60	65	53.75	48	41	16	8	M5
10	8	25	25	2.5	B	62.5	67.5	56.25	50	41	16	8	M5
11	9	26	25	2.5	B	65	70	58.75	55	41	16	8	M5
12	10	28	25	2.5	B	70	75	63.75	55	41	16	8	M5
13	11	30	25	2.5	B	75	80	68.75	65	41	16	8	M5
14	12	32	25	2.5	B	80	85	73.75	70	41	16	8	M5
15	13	34	25	2.5	B	85	90	78.75	70	41	16	8	M5
16	14	35	25	2.5	B	87.5	92.5	81.25	70	41	16	8	M5
17	21	36	25	2.5	B	90	95	83.75	75	41	16	8	M5
18	22	40	25	2.5	B	100	105	93.75	80	41	16	8	M5
19	15	42	25	2.5	B	105	110	98.75	80	41	16	8	M5
20	23	45	25	2.5	B	112.5	117.5	106.25	80	41	16	8	M5
21	16	48	25	2.5	B	120	125	113.75	85	41	16	8	M5
22	17	50	25	2.5	B	125	130	118.75	85	41	16	8	M6
23	18	52	25	2.5	B	130	135	123.75	85	41	16	8	M6
24	24	60	25	2.5	B	150	155	143.75	85	41	16	8	M6

Material and Treatment

Machining Stop Screw Hole

Change Screw Hole

Cut Hub
