Spur Gear - Pressure Angle 20 ° Module 2.5 Shape A -Round Hole- CFAHB/CFAHBB

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spur Gear - Pressure Angle 20 ° Module 2.5 Shape A -Round Hole- CFAHB2.5-12-25-A-8
Part number	CFAHB2.5-12-25-A-8

CAD models

Product selection

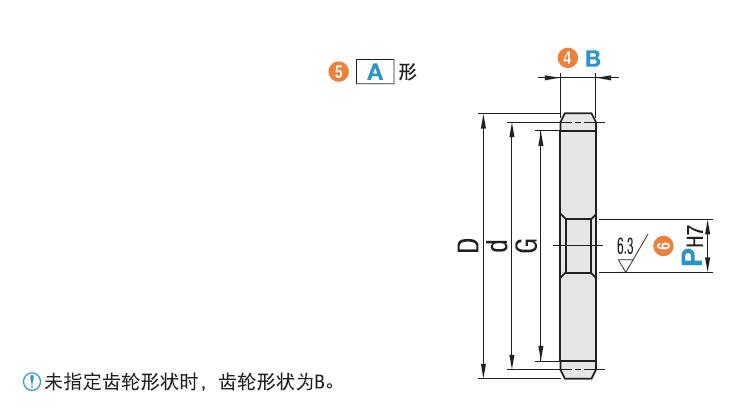

Index	Selector	Teeth Number	B	Modulus	Shape	P	d	D	G
1	1	12	25	2.5	A	8～13	30	35	23.75
2	2	14	25	2.5	A	8～15	35	40	28.75
3	3	15	25	2.5	A	8～20	37.5	42.5	31.25
4	4	16	25	2.5	A	8～22	40	45	33.75
5	21	18	25	2.5	A	8～26	45	50	38.75
6	22	19	25	2.5	A	8～27	47.5	52.5	41.25
7	5	20	25	2.5	A	8～28	50	55	43.75
8	6	22	25	2.5	A	8～32	55	60	48.75
9	7	24	25	2.5	A	8～36	60	65	53.75
10	8	25	25	2.5	A	8～38	62.5	67.5	56.25
11	9	26	25	2.5	A	8～43	65	70	58.75
12	10	28	25	2.5	A	8～48	70	75	63.75
13	11	30	25	2.5	A	8～51	75	80	68.75
14	12	32	25	2.5	A	8～55	80	85	73.75
15	13	34	25	2.5	A	10～55	85	90	78.75
16	14	35	25	2.5	A	10～55	87.5	92.5	81.25
17	15	36	25	2.5	A	10～57	90	95	83.75
18	23	40	25	2.5	A	10～60	100	105	93.75
19	24	42	25	2.5	A	10～60	105	110	98.75
20	16	45	25	2.5	A	10～60	112.5	117.5	106.25
21	17	48	25	2.5	A	10～60	120	125	113.75
22	18	50	25	2.5	A	12～60	125	130	118.75
23	19	52	25	2.5	A	15～60	130	135	123.75
24	20	60	25	2.5	A	25～60	150	155	143.75

Material and Treatment

Machining Step Hole

Z/Q

Z/P

J/S

J/T

Machining Side Hole

M_QFC/QTC

M_LFC/LTC

U_ZFC/ZTC

KFC/KTC/QFC/QTC/LFC/LTC
