Spur Gear - Pressure Angle 20 ° Module 2.0 Shape A -Round Hole- CFAHB/CFAHBB/CFAHBG/CFAHS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spur Gear - Pressure Angle 20 ° Module 2.0 Shape A -Round Hole- CFAHB2.0-12-20-A-8
Part number	CFAHB2.0-12-20-A-8

CAD models

Product selection

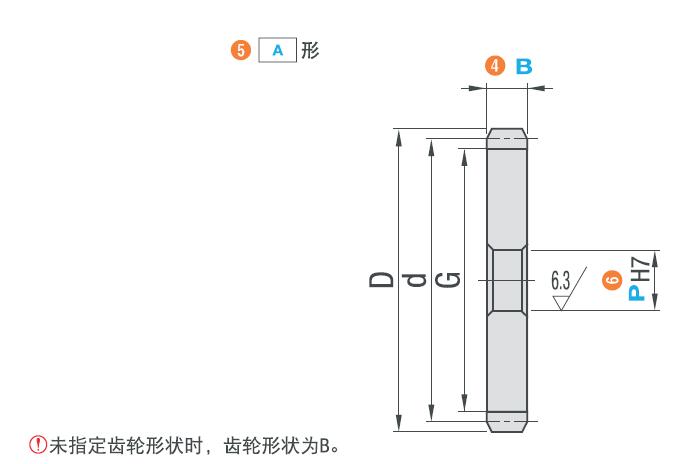

Index	Selector	Modulus	Teeth Number	B	Shape	P	d	D	G
1	1	2.0	12	20	A	8	24	28	19
2	2	2.0	14	20	A	8～11	28	32	23
3	3	2.0	15	20	A	8～15	30	34	25
4	4	2.0	16	20	A	8～16	32	36	27
5	23	2.0	18	20	A	8～21	36	40	31
6	24	2.0	19	20	A	8～21	38	42	33
7	5	2.0	20	20	A	8～23	40	44	35
8	6	2.0	22	20	A	8～25	44	48	39
9	7	2.0	24	20	A	8～28	48	52	43
10	8	2.0	25	20	A	8～28	50	54	45
11	9	2.0	26	20	A	8～30	52	56	47
12	10	2.0	28	20	A	8～33	56	60	51
13	11	2.0	30	20	A	8～36	60	64	55
14	12	2.0	32	20	A	8～38	64	68	59
15	13	2.0	34	20	A	10～38	68	72	63
16	14	2.0	35	20	A	10～40	70	74	65
17	15	2.0	36	20	A	10～43	72	76	67
18	25	2.0	40	20	A	10～48	80	84	75
19	26	2.0	42	20	A	10～48	84	88	79
20	16	2.0	45	20	A	10～48	90	94	85
21	17	2.0	48	20	A	10～50	96	100	91
22	18	2.0	50	20	A	10～50	100	104	95
23	19	2.0	52	20	A	12～52	104	108	99
24	20	2.0	60	20	A	12～52	120	124	115
25	21	2.0	70	20	A	15～52	140	144	135
26	22	2.0	72	20	A	15～52	144	148	139

Material and Treatment

Machining Step Hole

Z/Q

Z/P

J/S

J/T

Machining Side Hole

Not Available

M_QFC/QTC

M_LFC/LTC

U_ZFC/ZTC

KFC/KTC/QFC/QTC/LFC/LTC
