Spur Gear - Pressure Angle 20 ° Module 1.5 Shape K/B -Round Hole- CFAHB/CFAHBB/CFAHBG/CFAHS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spur Gear - Pressure Angle 20 ° Module 1.5 Shape K/B -Round Hole- CFAHB1.5-12-15-K-6
Part number	CFAHB1.5-12-15-K-6

CAD models

Product selection

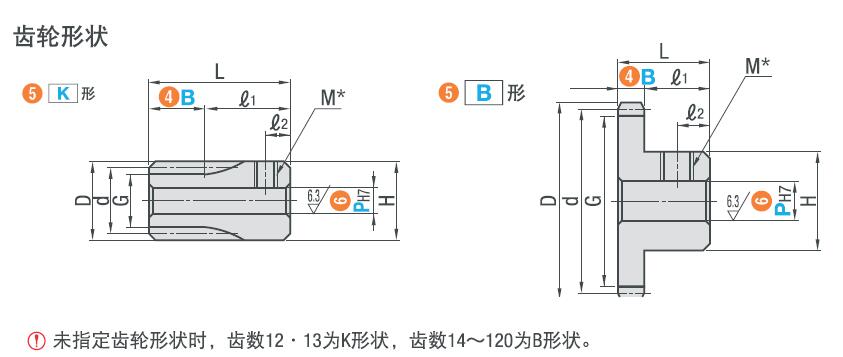

Index	Selector	Modulus	Teeth Number	B	Shape	P	d	D	G	H	L	l2	M
1	1	1.5	12	15	K	6～12	18	21	14.25	21	30	4	M4
2	2	1.5	14	15	B	6～8	21	24	17.25	16	24	4	M4
3	3	1.5	15	15	B	6～12	22.5	25.5	18.75	18	24	4	M4
4	4	1.5	16	15	B	6～12	24	27	20.25	20	24	4	M4
5	22	1.5	18	15	B	6～13	27	30	23.25	22	27	5	M4
6	23	1.5	19	15	B	8～15	28.5	31.5	24.75	24	27	5	M4
7	5	1.5	20	15	B	6～16	30	33	26.25	25	27	5	M4
8	6	1.5	22	15	B	6～17	33	36	29.25	26	27	5	M4
9	7	1.5	24	15	B	6～20	36	39	32.25	30	27	5	M5
10	8	1.5	25	15	B	6～20	37.5	40.5	33.75	30	27	5	M5
11	9	1.5	26	15	B	6～22	39	42	35.25	32	27	5	M5
12	10	1.5	28	15	B	6～23	42	45	38.25	34	27	5	M5
13	11	1.5	30	15	B	6～24	45	48	41.25	35	27	5	M5
14	12	1.5	32	15	B	6～28	48	51	44.25	40	27	5	M5
15	13	1.5	34	15	B	6～28	51	54	47.25	40	27	5	M5
16	14	1.5	35	15	B	6～28	52.5	55.5	48.75	40	27	5	M5
17	24	1.5	36	15	B	6～28	54	57	50.25	40	27	5	M5
18	25	1.5	40	15	B	8～33	60	63	56.25	45	27	5	M5
19	15	1.5	42	15	B	8～33	63	66	59.25	45	27	5	M5
20	26	1.5	45	15	B	8～33	67.5	70.5	63.75	45	27	5	M5
21	16	1.5	48	15	B	8～38	72	75	68.25	50	27	5	M5
22	17	1.5	50	15	B	8～38	75	78	71.25	50	27	5	M6
23	18	1.5	52	15	B	8～38	78	81	74.25	50	27	5	M6
24	27	1.5	60	15	B	12～43	90	93	86.25	55	27	5	M6
25	19	1.5	70	15	B	12～50	105	108	101.25	65	27	5	M6
26	20	1.5	72	15	B	12～50	108	111	104.25	65	27	5	M6
27	21	1.5	80	15	B	12～50	120	123	116.25	65	27	5	M6

Material and Treatment

Machining Step Hole

Not Available

Cut Hub

Not Available

Z/Q

Z/P

J/S

J/T
