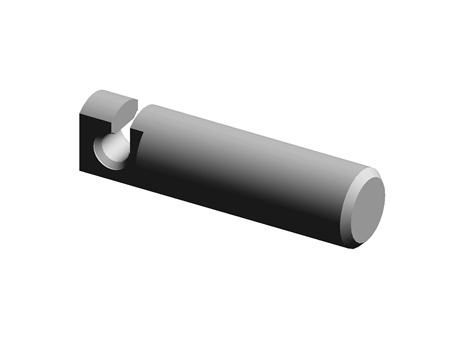

Spring/Buffer/Nitrogen Spring-Pillars for Tension Springs-Notch Hole Type-LBAIOK/LBSAIOK

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spring/Buffer/Nitrogen Spring-Pillars for Tension Springs-Notch Hole Type- LBAIOK4-15
Part number	LBAIOK4-15

CAD models

Product selection

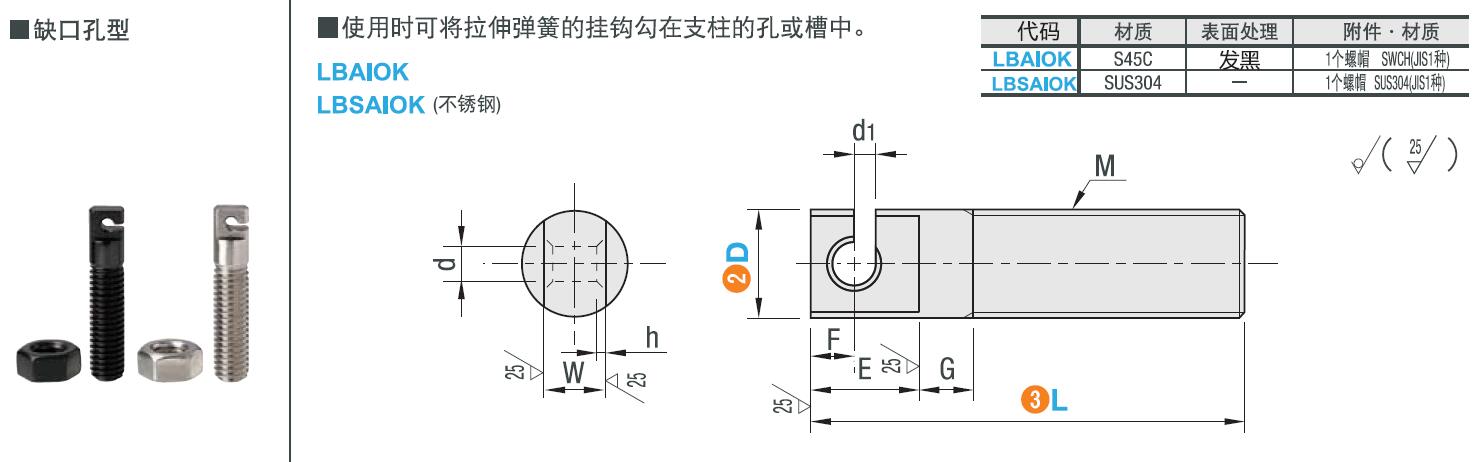

Index	Selector	D	M	d	d1	W	G	E	F	h	Use Maximum Load-LBAIOK	Use Maximum Load-LBSAIOK
1	1	4	M4	1.5	1	2.5	5	3.5	1.75	0.3	80	50
2	2	5	M5	2	1	3	5	4	2	0.4	115	72
3	3	6	M6	2	1	3.5	5	5	2.5	0.5	179	113
4	4	8	M8	3	1.5	5	5	7	3.5	1	300	189

Material , Treatment and Accessories
