By Shenzhen Shiruida Automation Equipment Co.,Ltd.

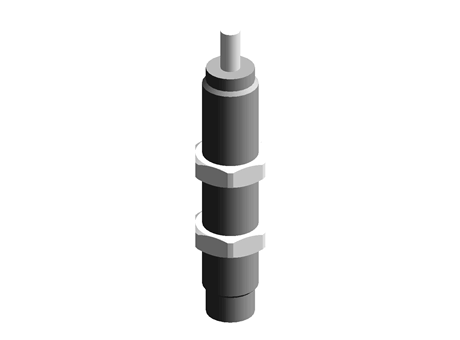

Spring/Buffer/Nitrogen Spring-Buffer-Two Stage-LACAT

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Spring/Buffer/Nitrogen Spring-Buffer-Two Stage- LACAT0806N
Part number	LACAT0806N

CAD models

Request for quotation

Product selection

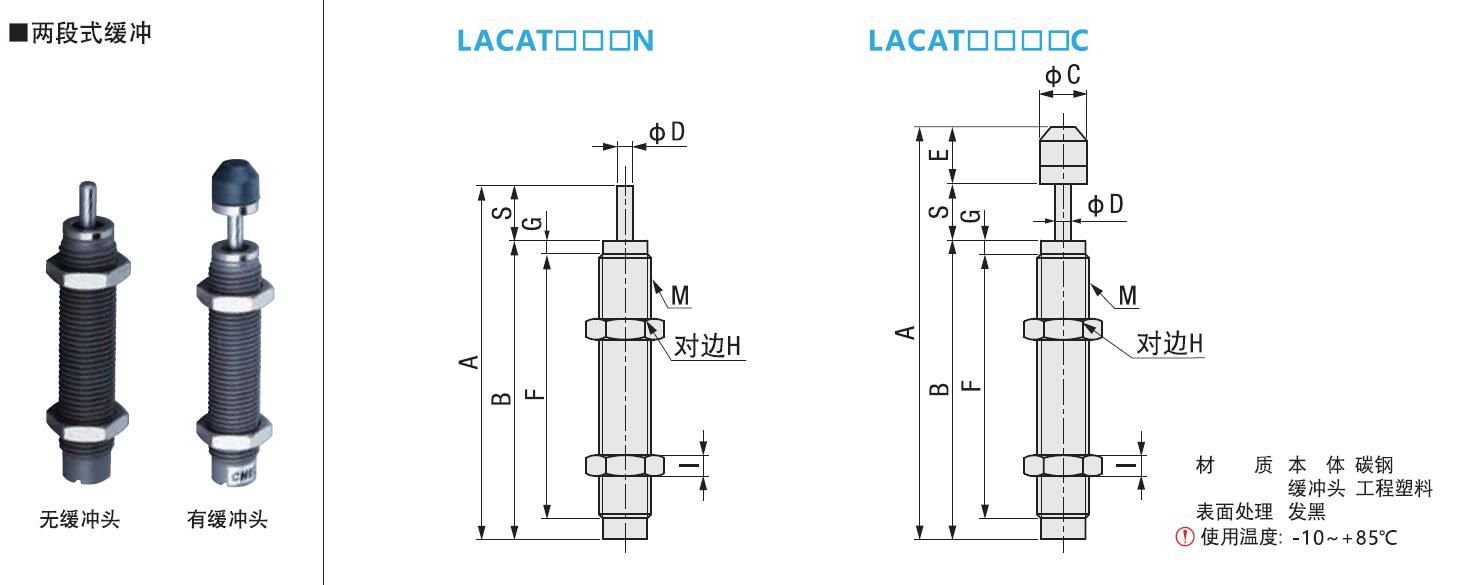

Index	Selector	No.	S	A	B	C	D	E	F	G	M	H	l
1	1	0806N	6	45.6	39.6	33.6	2.8	-	-	2	M8x1	11	3
2	2	0806C	6	51.6	39.6	33.6	2.8	6	6.7	2	M8x1	11	3
3	3	1007N	7	54.5	47.5	39	3	-	-	3	M10x1	12.7	3
4	4	1007C	7	63	47.5	39	3	8.5	8.5	3	M10x1	12.7	3
5	5	1412N	12	79	67	58.5	4	-	-	4	M14x1.5	19	6
6	6	1412C	12	91	67	58.5	4	12	11.9	4	M14x1.5	19	6
7	7	2015N	15	89	74	62.5	6	-	-	4	M20x1.5	26	6
8	8	2015C	15	105.2	74	62.5	6	16.2	17.9	4	M20x1.5	26	6
9	9	2725C	25	143.5	99	85.5	8	19.5	22	5	M27x1.5	36	6
10	10	2725N	25	124	99	85.5	8	-	-	-	M27x1.5	36	6

Documentation

Technical Documents
