Screw Gear - Pressure Angle 20° Helix Agle 45° Module 1.0/1.5/2.0/ 2.5 / 3.0 Round Hole + Screw Hole CFGTN/CFGTB/CFGTS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Screw Gear - Pressure Angle 20° Helix Angle 45° Module 1.0/1.5/2.0/ 2.5 / 3.0 Round Hole + Screw Hole CFGTN1.0-13-6-L
Part number	CFGTN1.0-13-6-L

CAD models

Product selection

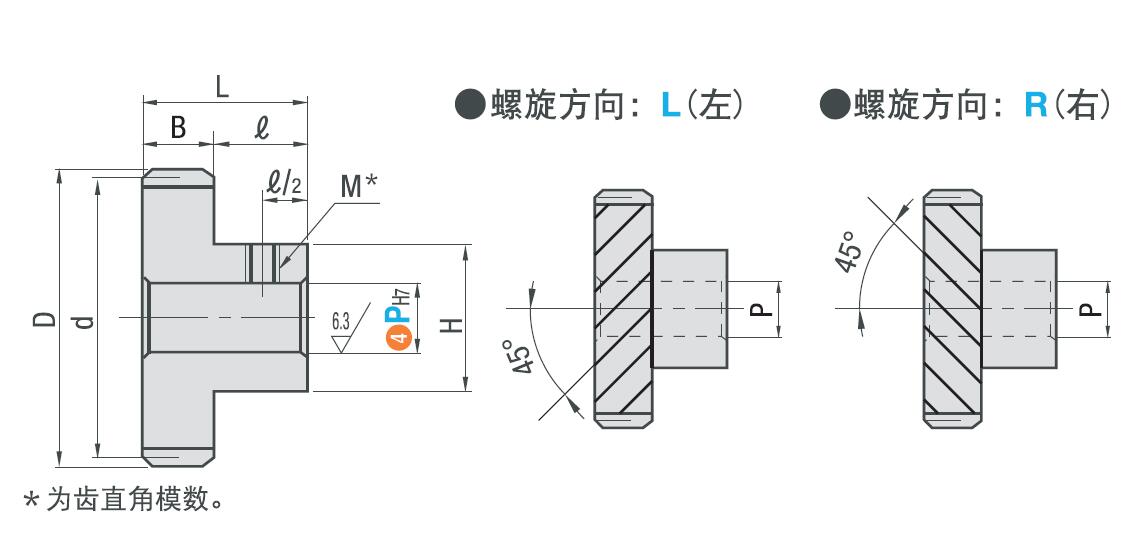

Index	Selector	Modulus	Teeth Number	P	d	D	B	H	L	l
1	1	1.0	13	6～7	18.38	20.38	10	15	20	10
2	2	1.0	15	6～10	21.21	23.21	10	18	20	10
3	3	1.0	20	8～16	28.28	30.28	10	25	20	10
4	4	1.0	26	10～20	36.77	38.77	10	30	20	10
5	5	1.0	30	10～25	42.43	44.43	10	35	20	10
6	6	1.5	10	8～8	21.21	24.21	15	16	25	10
7	7	1.5	13	10～14	27.58	30.58	15	23	25	10
8	8	1.5	15	10～16	31.82	34.82	15	25	25	10
9	9	1.5	20	12～20	42.43	45.43	15	30	25	10
10	10	1.5	26	12～30	55.15	58.15	15	40	25	10
11	11	1.5	30	12～33	63.64	66.64	15	45	25	10
12	12	2.0	10	12～13	28.28	32.28	20	22	35	15
13	13	2.0	13	12～20	36.77	40.77	20	30	35	15
14	14	2.0	15	12～25	42.43	46.43	20	35	35	15
15	15	2.0	20	15～33	56.57	60.57	20	45	35	15
16	16	2.0	26	20～46	73.54	77.54	20	60	35	15
17	17	2.0	30	20～51	84.85	88.85	20	65	35	15
18	18	2.5	10	12～17	35.36	40.36	22	26	38	16
19	28	2.5	13	15～25	45.96	50.96	22	35	38	16
20	29	2.5	15	15～30	53.03	58.03	22	40	38	16
21	19	2.5	20	20～46	70.71	75.71	22	60	38	16
22	20	2.5	26	20～56	91.92	96.92	22	70	38	16
23	21	2.5	30	20～65	106.07	111.07	22	80	38	16
24	22	3.0	10	15～24	42.43	48.43	25	34	43	18
25	23	3.0	13	20～33	55.15	61.15	25	45	43	18
26	24	3.0	15	20～38	63.64	69.64	25	50	43	18
27	25	3.0	20	20～46	84.85	90.85	25	60	43	18
28	26	3.0	26	20～65	110.31	116.31	25	80	43	18
29	27	3.0	30	20～65	127.28	133.28	25	90	43	18

Material and Treatment

Spiral Direction

Machining Stop Screw Hole
