Rotary Shafts - Both Ends Tapped With Keyway Type - D Tolerance h9/h7/g6 - BCSMKRW/BCPSMKRW/BCSSMKRW/BCSHKRW/BCPSHKRW/BCSSHKRW/BCSGKRW/BCPSGKRW/BCSSGKRW Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Rotary Shafts - Both Ends Tapped With Keyway Type BCSMKRW6-15-M2.6-N2.6-KA0.1-A2.1
Part number	BCSMKRW6-15-M2.6-N2.6-KA0.1-A2.1

CAD models

Request for quotation

Product selection

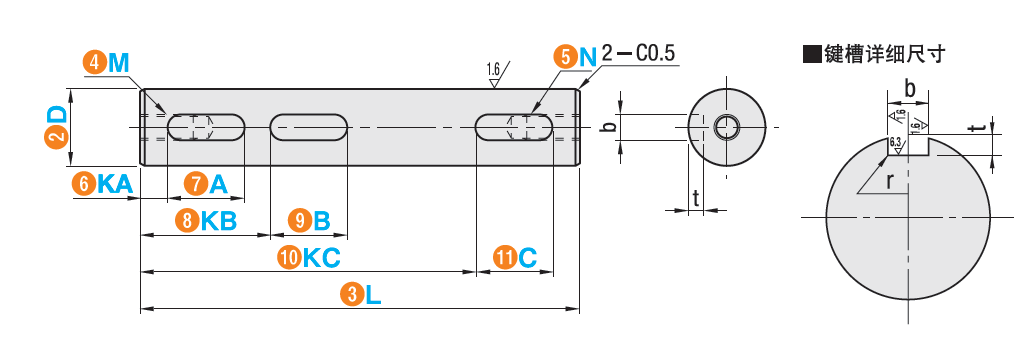

Index	Selector	Code	Material	Surface treatment	Tolerance	D	L Smallest Unit 0.1mm
1	1	BCSMKRW	S45C	Blackening	h9	6(0,-0.030)	15.0～400.0
2	2	BCSMKRW	S45C	Blackening	h9	8(0,-0.036)	15.0～500.0
3	3	BCSMKRW	S45C	Blackening	h9	10(0,-0.036)	15.0～600.0
4	4	BCSMKRW	S45C	Blackening	h9	12(0,-0.043)	15.0～700.0
5	5	BCSMKRW	S45C	Blackening	h9	15(0,-0.043)	15.0～800.0
6	6	BCSMKRW	S45C	Blackening	h9	20(0,-0.052)	30.0～1000.0
7	7	BCSMKRW	S45C	Blackening	h9	25(0,-0.052)	50.0～1000.0
8	8	BCSMKRW	S45C	Blackening	h9	30(0,-0.052)	60.0～1000.0
9	9	BCSMKRW	S45C	Blackening	h9	35(0,-0.062)	70.0～1000.0
10	10	BCPSMKRW	S45C	Electroless nickel plating	h9	6(0,-0.030)	15.0～400.0
11	11	BCPSMKRW	S45C	Electroless nickel plating	h9	8(0,-0.036)	15.0～500.0
12	12	BCPSMKRW	S45C	Electroless nickel plating	h9	10(0,-0.036)	15.0～600.0
13	13	BCPSMKRW	S45C	Electroless nickel plating	h9	12(0,-0.043)	15.0～700.0
14	14	BCPSMKRW	S45C	Electroless nickel plating	h9	15(0,-0.043)	15.0～800.0
15	15	BCPSMKRW	S45C	Electroless nickel plating	h9	20(0,-0.052)	30.0～1000.0
16	16	BCPSMKRW	S45C	Electroless nickel plating	h9	25(0,-0.052)	50.0～1000.0
17	17	BCPSMKRW	S45C	Electroless nickel plating	h9	30(0,-0.052)	60.0～1000.0
18	18	BCPSMKRW	S45C	Electroless nickel plating	h9	35(0,-0.062)	70.0～1000.0
19	19	BCSSMKRW	SUS304	-	h9	8(0,-0.036)	15.0～500.0
20	20	BCSSMKRW	SUS304	-	h9	10(0,-0.036)	15.0～600.0
21	21	BCSSMKRW	SUS304	-	h9	12(0,-0.043)	15.0～700.0
22	22	BCSSMKRW	SUS304	-	h9	15(0,-0.043)	15.0～800.0
23	23	BCSSMKRW	SUS304	-	h9	20(0,-0.052)	30.0～1000.0
24	24	BCSSMKRW	SUS304	-	h9	25(0,-0.052)	50.0～1000.0
25	25	BCSSMKRW	SUS304	-	h9	30(0,-0.052)	60.0～1000.0
26	26	BCSSMKRW	SUS304	-	h9	35(0,-0.062)	70.0～1000.0
27	27	BCSHKRW	S45C	Blackening	h7	6(0,-0.012)	15.0～400.0
28	28	BCSHKRW	S45C	Blackening	h7	8(0,-0.015)	15.0～500.0
29	29	BCSHKRW	S45C	Blackening	h7	10(0,-0.015)	15.0～600.0
30	30	BCSHKRW	S45C	Blackening	h7	12(0,-0.018)	15.0～700.0
31	31	BCSHKRW	S45C	Blackening	h7	15(0,-0.018)	15.0～800.0
32	32	BCSHKRW	S45C	Blackening	h7	17(0,-0.018)	30.0～900.0
33	33	BCSHKRW	S45C	Blackening	h7	20(0,-0.021)	30.0～1000.0
34	34	BCSHKRW	S45C	Blackening	h7	25(0,-0.021)	50.0～1000.0
35	35	BCSHKRW	S45C	Blackening	h7	30(0,-0.021)	60.0～1000.0
36	36	BCSHKRW	S45C	Blackening	h7	35(0,-0.025)	70.0～1000.0
37	37	BCSHKRW	S45C	Blackening	h7	40(0,-0.025)	80.0～1000.0
38	38	BCSHKRW	S45C	Blackening	h7	50(0,-0.025)	100.0～1000.0
39	39	BCPSHKRW	S45C	Electroless nickel plating	h7	6(0,-0.012)	15.0～400.0
40	40	BCPSHKRW	S45C	Electroless nickel plating	h7	8(0,-0.015)	15.0～500.0
41	41	BCPSHKRW	S45C	Electroless nickel plating	h7	10(0,-0.015)	15.0～600.0
42	42	BCPSHKRW	S45C	Electroless nickel plating	h7	12(0,-0.018)	15.0～700.0
43	43	BCPSHKRW	S45C	Electroless nickel plating	h7	15(0,-0.018)	15.0～800.0
44	44	BCPSHKRW	S45C	Electroless nickel plating	h7	17(0,-0.018)	30.0～900.0
45	45	BCPSHKRW	S45C	Electroless nickel plating	h7	20(0,-0.021)	30.0～1000.0
46	46	BCPSHKRW	S45C	Electroless nickel plating	h7	25(0,-0.021)	50.0～1000.0
47	47	BCPSHKRW	S45C	Electroless nickel plating	h7	30(0,-0.021)	60.0～1000.0
48	48	BCPSHKRW	S45C	Electroless nickel plating	h7	35(0,-0.025)	70.0～1000.0
49	49	BCPSHKRW	S45C	Electroless nickel plating	h7	40(0,-0.025)	80.0～1000.0
50	50	BCPSHKRW	S45C	Electroless nickel plating	h7	50(0,-0.025)	100.0～1000.0
51	51	BCSSHKRW	SUS304	-	h7	6(0,-0.012)	15.0～400.0
52	52	BCSSHKRW	SUS304	-	h7	8(0,-0.015)	15.0～500.0
53	53	BCSSHKRW	SUS304	-	h7	10(0,-0.015)	15.0～600.0
54	54	BCSSHKRW	SUS304	-	h7	12(0,-0.018)	15.0～700.0
55	55	BCSSHKRW	SUS304	-	h7	15(0,-0.018)	15.0～800.0
56	56	BCSSHKRW	SUS304	-	h7	17(0,-0.018)	30.0～900.0
57	57	BCSSHKRW	SUS304	-	h7	20(0,-0.021)	30.0～1000.0
58	58	BCSSHKRW	SUS304	-	h7	25(0,-0.021)	50.0～1000.0
59	59	BCSSHKRW	SUS304	-	h7	30(0,-0.021)	60.0～1000.0
60	60	BCSSHKRW	SUS304	-	h7	35(0,-0.025)	70.0～1000.0
61	61	BCSSHKRW	SUS304	-	h7	40(0,-0.025)	80.0～1000.0
62	62	BCSSHKRW	SUS304	-	h7	50(0,-0.025)	100.0～1000.0
63	63	BCSGKRW	S45C	Blackening	g6	6(-0.004,-0.012)	15.0～400.0
64	64	BCSGKRW	S45C	Blackening	g6	8(-0.005,-0.014)	15.0～500.0
65	65	BCSGKRW	S45C	Blackening	g6	10(-0.005,-0.014)	15.0～600.0
66	66	BCSGKRW	S45C	Blackening	g6	12(-0.006,-0.017)	15.0～700.0
67	67	BCSGKRW	S45C	Blackening	g6	13(-0.006,-0.017)	15.0～700.0
68	68	BCSGKRW	S45C	Blackening	g6	15(-0.006,-0.017)	15.0～800.0
69	69	BCSGKRW	S45C	Blackening	g6	16(-0.006,-0.017)	15.0～900.0
70	70	BCSGKRW	S45C	Blackening	g6	17(-0.006,-0.017)	30.0～900.0
71	71	BCSGKRW	S45C	Blackening	g6	18(-0.006,-0.017)	30.0～900.0
72	72	BCSGKRW	S45C	Blackening	g6	20(-0.007,-0.020)	30.0～1000.0
73	73	BCSGKRW	S45C	Blackening	g6	22(-0.007,-0.020)	40.0～1000.0
74	74	BCSGKRW	S45C	Blackening	g6	25(-0.007,-0.020)	50.0～1000.0
75	75	BCSGKRW	S45C	Blackening	g6	30(-0.007,-0.020)	60.0～1000.0
76	76	BCSGKRW	S45C	Blackening	g6	35(-0.009,-0.025)	70.0～1000.0
77	77	BCSGKRW	S45C	Blackening	g6	40(-0.009,-0.025)	80.0～1000.0
78	78	BCSGKRW	S45C	Blackening	g6	50(-0.009,-0.025)	100.0～1000.0
79	79	BCPSGKRW	S45C	Electroless nickel plating	g6	6(-0.004,-0.012)	15.0～400.0
80	80	BCPSGKRW	S45C	Electroless nickel plating	g6	8(-0.005,-0.014)	15.0～500.0
81	81	BCPSGKRW	S45C	Electroless nickel plating	g6	10(-0.005,-0.014)	15.0～600.0
82	82	BCPSGKRW	S45C	Electroless nickel plating	g6	12(-0.006,-0.017)	15.0～700.0
83	83	BCPSGKRW	S45C	Electroless nickel plating	g6	13(-0.006,-0.017)	15.0～700.0
84	84	BCPSGKRW	S45C	Electroless nickel plating	g6	15(-0.006,-0.017)	15.0～800.0
85	85	BCPSGKRW	S45C	Electroless nickel plating	g6	16(-0.006,-0.017)	15.0～900.0
86	86	BCPSGKRW	S45C	Electroless nickel plating	g6	17(-0.006,-0.017)	30.0～900.0
87	87	BCPSGKRW	S45C	Electroless nickel plating	g6	18(-0.006,-0.017)	30.0～900.0
88	88	BCPSGKRW	S45C	Electroless nickel plating	g6	20(-0.007,-0.020)	30.0～1000.0
89	89	BCPSGKRW	S45C	Electroless nickel plating	g6	22(-0.007,-0.020)	40.0～1000.0
90	90	BCPSGKRW	S45C	Electroless nickel plating	g6	25(-0.007,-0.020)	50.0～1000.0
91	91	BCPSGKRW	S45C	Electroless nickel plating	g6	30(-0.007,-0.020)	60.0～1000.0
92	92	BCPSGKRW	S45C	Electroless nickel plating	g6	35(-0.009,-0.025)	70.0～1000.0
93	93	BCPSGKRW	S45C	Electroless nickel plating	g6	40(-0.009,-0.025)	80.0～1000.0
94	94	BCPSGKRW	S45C	Electroless nickel plating	g6	50(-0.009,-0.025)	100.0～1000.0
95	95	BCSSGKRW	SUS304	-	g6	6(-0.004,-0.012)	15.0～400.0
96	96	BCSSGKRW	SUS304	-	g6	8(-0.005,-0.014)	15.0～500.0
97	97	BCSSGKRW	SUS304	-	g6	10(-0.005,-0.014)	15.0～600.0
98	98	BCSSGKRW	SUS304	-	g6	12(-0.006,-0.017)	15.0～700.0
99	99	BCSSGKRW	SUS304	-	g6	15(-0.006,-0.017)	15.0～800.0
100	100	BCSSGKRW	SUS304	-	g6	17(-0.006,-0.017)	30.0～900.0
101	101	BCSSGKRW	SUS304	-	g6	20(-0.007,-0.020)	30.0～1000.0
102	102	BCSSGKRW	SUS304	-	g6	25(-0.007,-0.020)	50.0～1000.0
103	103	BCSSGKRW	SUS304	-	g6	30(-0.007,-0.020)	60.0～1000.0
104	104	BCSSGKRW	SUS304	-	g6	35(-0.009,-0.025)	70.0～1000.0
105	105	BCSSGKRW	SUS304	-	g6	40(-0.009,-0.025)	80.0～1000.0
106	106	BCSSGKRW	SUS304	-	g6	50(-0.009,-0.025)	100.0～1000.0

Keyway

Alterations

L Dimension Tolerance Change

Depth of Internal M Thread Change

M：No Change

Depth of Internal N Thread Change

N：No Change

Input KA Value

Input A Value

Input KB Value

Input B Value

Input KC Value

Input C Value

Input FC Value

Input G Value

Input WFC Value

Input J Value

Input V Value

Input W Value

Input SFC Value

Input SG Value

Input AG Value

Input UC Value

Input SC Value

Input TA Value

Input TB Value
