Roller Spline Assembly-One End Stepped Male Thread - ADBKM/ADBKN/ADBKS



Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Roller Spline Assembly ADBKM6-60-F5-B3-P3-M3
Part number	ADBKM6-60-F5-B3-P3-M3

CAD models

Request for quotation

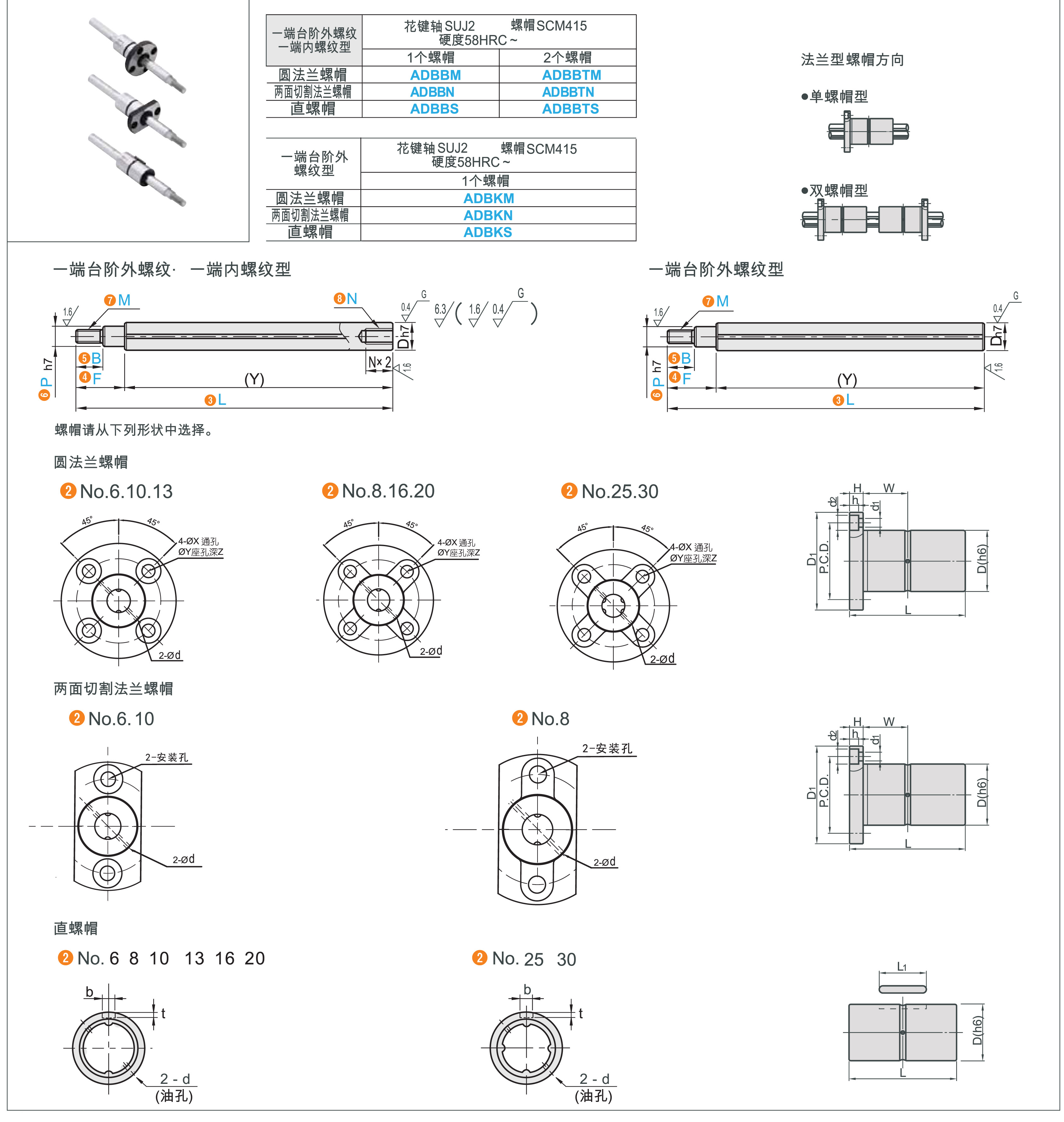

Product selection

Index	Selector	No.	D h7	D	L	D1.	H.	P.C.D.	d1	d2	h	W	d	b	B.	t	Rated Torque <br /> dynamic Ct (kgf.m)	Rated Torque <br /> static Cot (kgf.m)	Rated Load <br /> dynamic C (kgf)	Rated Load <br /> static Co (kgf)	Static allowable moment <br /> M01 (kgf.m)	Static allowable moment <br /> M02
1	1	6	6	14	25	30	6	22	3.4	6.5	4.5	7.5	1	2.5	18	1.2	0.46	0.76	137	225	0.39	3.48
2	2	8	8	16	27	32	8	24	3.4	6.5	4.5	7.5	1.5	2.5	21	1.2	0.6	0.99	137	225	0.39	3.82
3	3	10	10.4	21	33	42	9	32	4.5	8	4	10.5	1.5	3	25	1.5	1.62	2.25	285	397	0.95	8.53
4	4	13	13.4	24	36	44	9	33	4.5	8	4.5	11	1.5	3	-	1.5	2.89	3.94	396	540	1.5	12.46
5	5	16	16.6	31	50	51	10	40	4.5	8	6	18	2	3.5	-	2	4.77	7.43	545	849	3.71	26.09
6	6	20	20.6	35	56	58	10	45	5.5	9.5	5.4	18	2	4	-	2.5	7.9	12.09	724	1109	5.53	38
7	7	25	25.8	42	71	65	13	52	5.5	9.5	8	26.5	3	4	-	2.5	21.99	43.01	1003	1593	10.35	68.59
8	8	30	30.8	47	80	75	13	60	6.6	11	8	30	3	4	-	2.5	30.26	62.93	1160	1980	15.68	93.27

Nut Type

L

P

M

3

B

F

Alteration

SC Value

FC Value

A Value

Alteration: number of nut
