Rod End Bearings - Link Ball Straight Type EDBID/EDBIDL Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

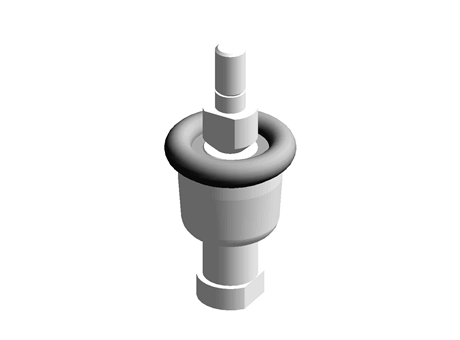

Description	Rod End Bearings - Link Ball Straight Type EDBID5
Part number	EDBID5

CAD models

Request for quotation

Product selection

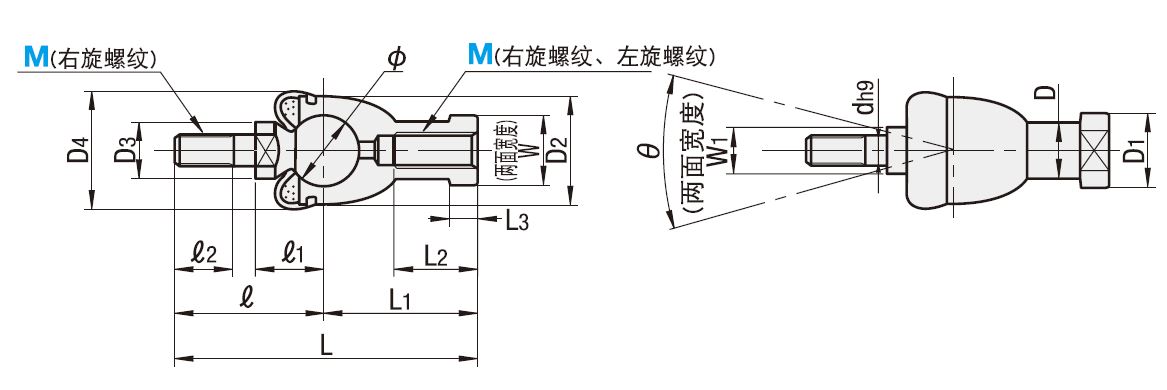

Index	Selector	M	D	D1	D2	L	L1	L2	MXP	L3	W	d	l	l1	l2	Ball Dia. φ (mm)	W1	D3	D4	Allowable Incline Angle θ	Strength of Yielding Point PK(N)	Static Load Capacity Thrust Tensile Cs (N)	Static Load Capacity Thrust Compression Cs (N)	Weight
1	10	5	9	11	17	46	24	12	M5X0.8	4	9	5	22	11	8	11.112	7	9	20	25	2840	5690	11400	25
2	11	6	10	13	20	55.2	28	15	M6X1.0	5	11	6	27.2	12.2	11	12.7	8	10	20	25	3730	7450	14900	40
3	1	8	12.5	16	24	65	32	16	M8X1.25	5	14	8	33	16	12	15.875	10	12	24	25	5880	11700	23200	75
4	2	10	15	19	28	80.5	35	18	M10X1.5	6.5	17	10	45.5	19.5	21	19.05	11	14	30	25	8430	16800	33500	123
5	3	10A	15	19	28	74.5	35	18	M10X1.25	6.5	17	10	39.5	19.5	15	19.05	11	14	30	25	8430	16800	33500	120
6	4	12	17.5	22	32	91	40	20	M12X1.75	6.5	19	12	51	21	24	22.225	17	19	32	25	11400	22800	45600	190
7	5	12A	17.5	22	32	84	40	20	M12X1.25	6.5	19	12	44	21	17	22.225	17	19	32	25	11400	22800	45600	185
8	6	14	20	25	36	109	45	25	M14X2.0	8	22	14	64	23.5	28	25.4	17	19	38	17	14900	29800	59600	280
9	7	14A	20	25	36	103	45	25	M14X1.5	8	22	14	58	23.5	22	25.4	17	19	38	17	14900	29800	59600	275
10	8	16	22	27	40	118	50	27	M16X2.0	8	22	16	68	25.5	29	25.4	19	22	44	17	14900	29800	59600	370
11	9	16A	22	27	40	112	50	27	M16X1.5	8	22	16	62	25.5	23	25.4	19	22	44	17	14900	29800	59600	360
