Pulley for Round Belt-Screw Fixed Type-CDRDF/CDRDFM/CDRDFA/CDRD/CDRDM/CDRDA/CDRF/CDRFM/CDRFA/CDR/CDRM/CDRA

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pulley for Round Belt-Screw Fixed Type- CDRDF15-1-H4
Part number	CDRDF15-1-H4

CAD models

Product selection

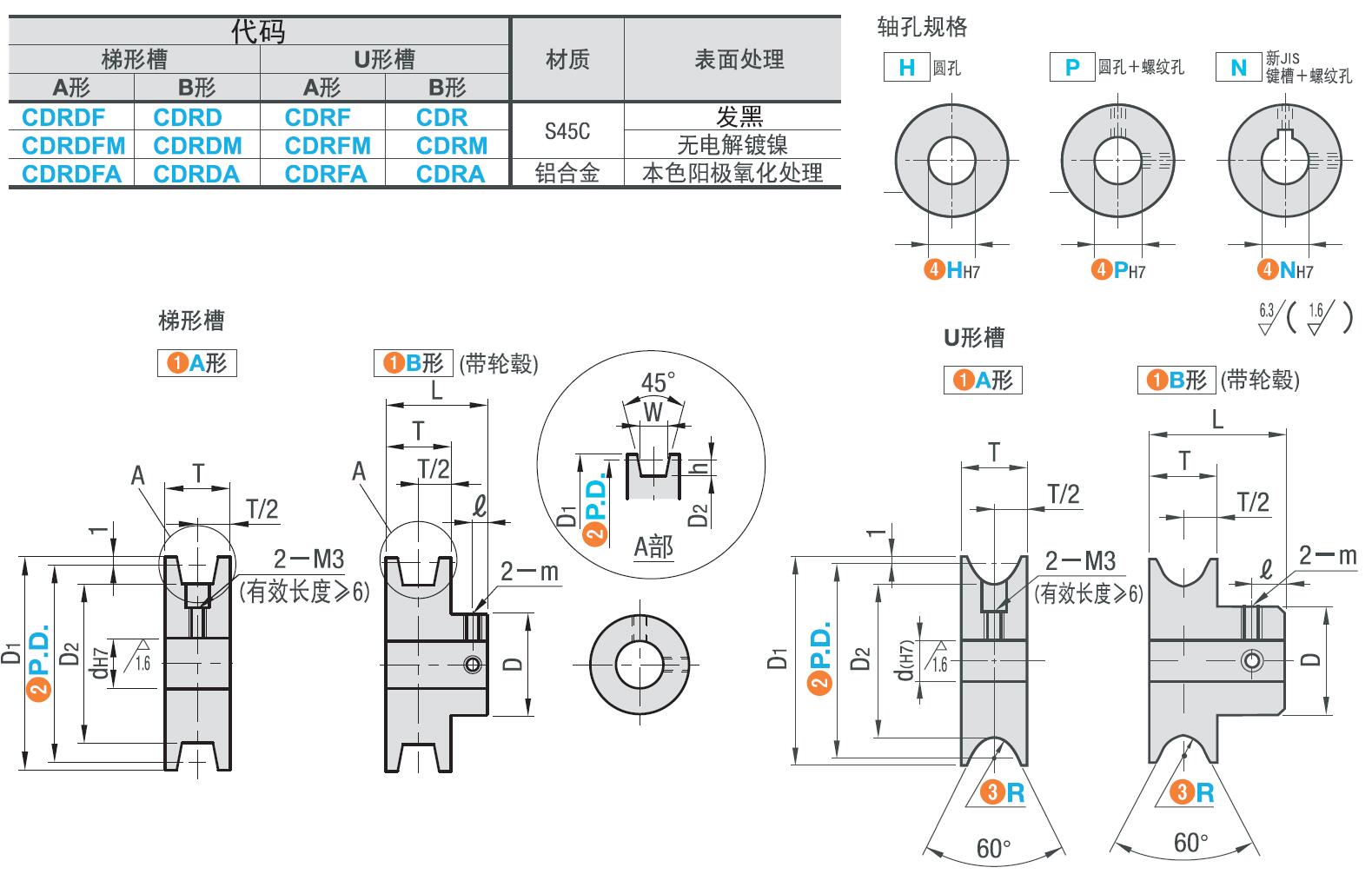

Index	Selector	P.D.	R	D1	D2	h	W	T	L	l	D	m
1	1	15	1	17	13	1	2.2	5	11	3	12	M3
2	2	20	1	22	18	1	2.2	5	11	3	16	M3
3	3	30	1	32	28	1	2.2	5	11	3	20	M3
4	4	40	1	42	38	1	2.2	5	11	3	20	M3
5	5	20	1.5	22	17	1.5	3.3	10	16	3	16	M3
6	6	30	1.5	32	27	1.5	3.3	10	16	3	20	M3
7	7	40	1.5	42	37	1.5	3.3	10	16	3	20	M3
8	8	45	1.5	47	42	1.5	3.3	10	20	5	25	M4
9	31	60	1.5	62	57	1.5	3.3	10	20	5	25	M4
10	32	18	2	20	14	2	4.4	10	16	3	16	M3
11	9	23	2	25	19	2	4.4	10	16	3	20	M3
12	10	28	2	30	24	2	4.4	10	16	3	20	M3
13	11	30	2	32	26	2	4.4	10	16	3	20	M3
14	33	40	2	42	36	2	4.4	10	16	3	20	M3
15	34	45	2	47	41	2	4.4	10	20	5	25	M4
16	12	48	2	50	44	2	4.4	10	20	5	25	M4
17	13	60	2	62	56	2	4.4	10	20	5	25	M4
18	14	80	2	82	76	2	4.4	10	20	5	25	M4
19	15	28	2.5	30	23	2.5	5.5	10	16	3	20	M3
20	16	40	2.5	42	35	2.5	5.5	10	20	5	25	M4
21	17	48	2.5	50	43	2.5	5.5	10	20	5	25	M4
22	18	50	2.5	52	45	2.5	5.5	10	20	5	25	M4
23	19	60	2.5	62	55	2.5	5.5	10	20	5	25	M4
24	20	75	2.5	77	70	2.5	5.5	10	20	5	25	M4
25	21	80	2.5	82	75	2.5	5.5	10	20	5	25	M4
26	22	28	3	30	22	3	6.6	10	16	3	20	M3
27	23	38	3	40	32	3	6.6	10	20	5	20	M4
28	24	48	3	50	42	3	6.6	10	20	5	25	M4
29	25	50	3	52	44	3	6.6	10	20	5	25	M4
30	26	58	3	60	52	3	6.6	10	20	5	25	M4
31	27	60	3	62	54	3	6.6	10	20	5	25	M4
32	28	75	3	77	69	3	6.6	10	20	5	25	M4
33	29	80	3	82	74	3	6.6	10	20	5	25	M4
34	30	95	3	97	89	3	6.6	10	20	5	25	M4
35	35	100	3	102	94	3	6.6	10	20	5	25	M4
36	36	50	4	52	42	4	8.8	12	24	6	30	M4/M5
37	37	60	4	62	52	4	8.8	12	24	6	30	M4/M5
38	38	80	4	82	72	4	8.8	12	24	6	30	M4/M5
39	39	100	4	102	92	4	8.8	12	24	6	30	M4/M5
40	40	120	4	122	112	4	8.8	12	24	6	30	M4/M5
41	41	60	5	62	50	5	11	15	27	6	30	M4/M5
42	42	80	5	82	70	5	11	15	27	6	30	M4/M5
43	43	100	5	102	90	5	11	15	27	6	30	M4/M5
44	44	120	5	122	110	5	11	15	27	6	30	M4/M5
45	45	140	5	142	130	5	11	15	27	6	30	M4/M5

Hole Type

Shape

Type

Material and Treatment
