Precision Linear Shafts -Stepped Ends AAVBN/AAVSBN/AAVPBN/AAVPSBN

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

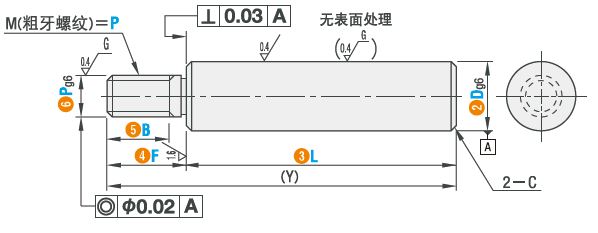

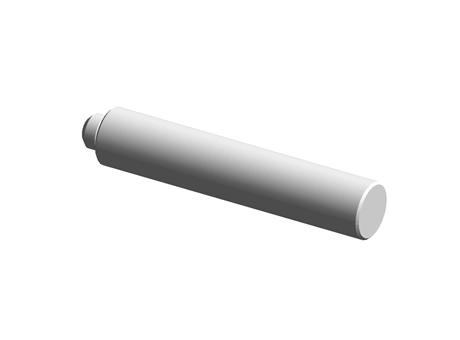

Description	Precision Linear Shafts - Stepped Ends AAVBN5-25-F9-B7-P3
Part number	AAVBN5-25-F9-B7-P3

CAD models

Product selection

Index	Selector	D g6	L 1mm Increment	F	(Y) Max	C
1	1	5	25～296	2≤F≤PX5	300	Below 0.2mm
2	2	6	25～296	2≤F≤PX5	300	Below 0.5mm
3	3	8	25～296	2≤F≤PX5	300	Below 0.5mm
4	4	10	25～345	2≤F≤PX5	350	Below 0.5mm
5	5	12	25～345	2≤F≤PX5	350	Below 0.5mm
6	6	13	25～345	2≤F≤PX5	350	Below 0.5mm
7	7	15	25～345	2≤F≤PX5	350	Below 0.5mm
8	8	16	25～345	2≤F≤PX5	350	Below 0.5mm
9	9	20	30～445	2≤F≤PX5	450	Below 1.0mm
10	10	25	30～443	2≤F≤PX5	450	Below 1.0mm
11	11	30	30～443	2≤F≤PX5	450	Below 1.0mm

Code

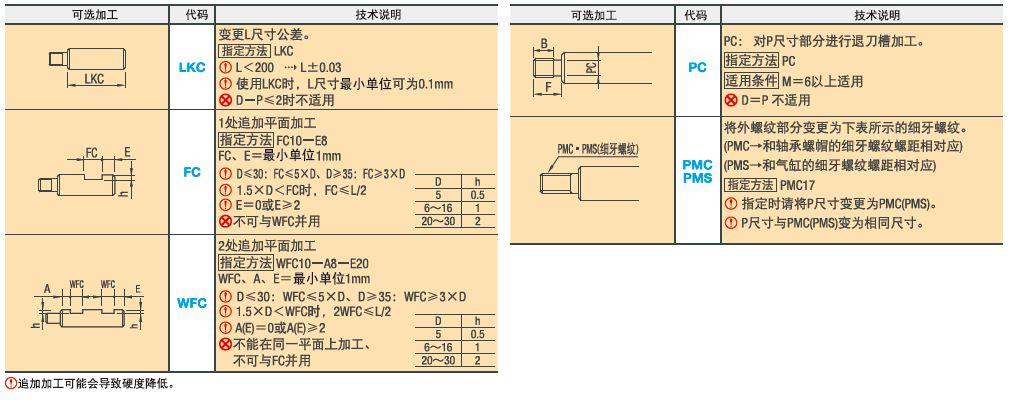

L Dimension Tolerance Change (Precision)

Alterations

Thread Choice

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

E (FC) Value

PC Choice
