Precision Linear Shafts - One End Threaded One End Tapped with Wrench Flat Type AAVAZ/AAVSAZ/AAVPAZ/AAVPSAZ

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

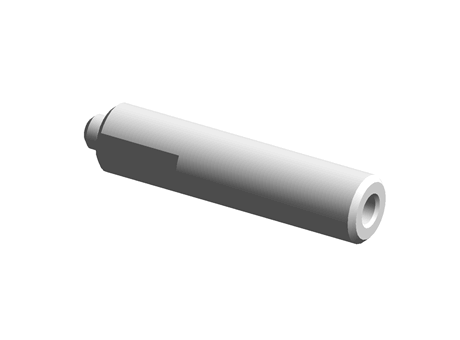

Description	Precision Linear Shafts - One End Threaded One End Tapped with Wrench Flat Type AAVAZ6-25-F9-B7-P3-N3-SC0
Part number	AAVAZ6-25-F9-B7-P3-N3-SC0

CAD models

Product selection

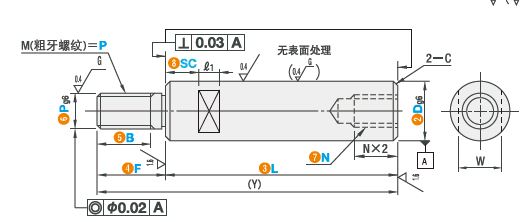

Index	Selector	D g6	L 1mm Increment	F	(Y) Max	R	C
1	1	6	25～296	2≤F≤PX5	300	Below0.3mm	Below 0.5mm
2	2	8	25～296	2≤F≤PX5	300	Below0.3mm	Below 0.5mm
3	3	10	25～345	2≤F≤PX5	350	Below0.3mm	Below 0.5mm
4	4	12	25～345	2≤F≤PX5	350	Below0.3mm	Below 0.5mm
5	5	13	25～345	2≤F≤PX5	350	Below0.3mm	Below 0.5mm
6	6	15	25～345	2≤F≤PX5	350	Below0.3mm	Below 0.5mm
7	7	16	25～345	2≤F≤PX5	350	Below0.3mm	Below 0.5mm
8	8	20	25～445	2≤F≤PX5	450	Below0.3mm	Below 1.0mm
9	9	25	25～443	2≤F≤PX5	450	Below0.3mm	Below 1.0mm
10	10	30	25～443	2≤F≤PX5	450	Below0.3mm	Below 1.0mm

Code

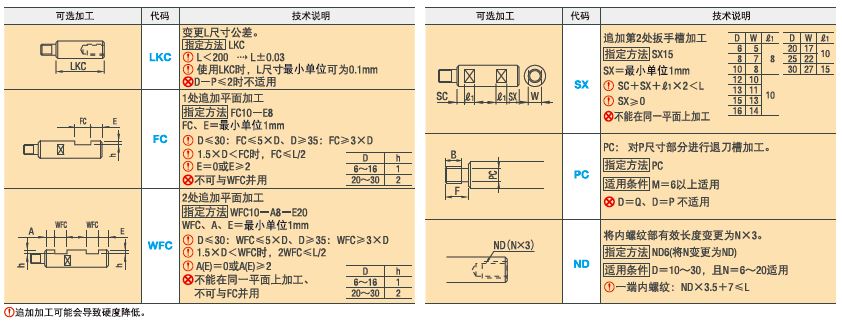

L Dimension Tolerance Change (Precision)

Alterations

PC Choice

N/ND Choice

No change

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

E (FC) Value

SX Value
