Precision Linear Shafts - One End Stepped and Tapped - Wrench Flat Type AAVPG/AAVSPG/AAVPPG/AAVPSPG

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Precision Linear Shafts - One End Stepped and Tapped - Wrench Flat Type AAVPG8-25-F6-P6-M3-SC0
Part number	AAVPG8-25-F6-P6-M3-SC0

CAD models

Product selection

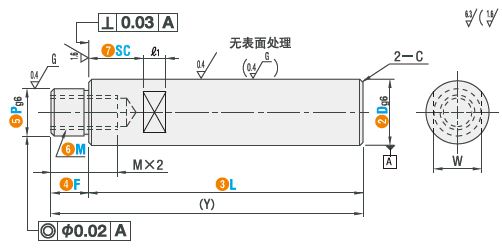

Index	Selector	D g6	L 1mm Increment	F	p_txt	(Y) Max	C
1	1	8	25～298	2≤F≤PX4	6	300	Below 0.5mm
2	2	10	25～348	2≤F≤PX4	6～8	350	Below 0.5mm
3	3	12	25～348	2≤F≤PX4	6～10	350	Below 0.5mm
4	4	13	25～348	2≤F≤PX4	6～11	350	Below 0.5mm
5	5	15	25～348	2≤F≤PX4	6～13	350	Below 0.5mm
6	6	16	25～348	2≤F≤PX4	6～14	350	Below 0.5mm
7	7	20	25～448	2≤F≤PX4	8～17	450	Below 1.0mm
8	8	25	25～448	2≤F≤PX4	8～22	450	Below 1.0mm
9	9	30	25～448	2≤F≤PX4	9～27	450	Below 1.0mm

Code

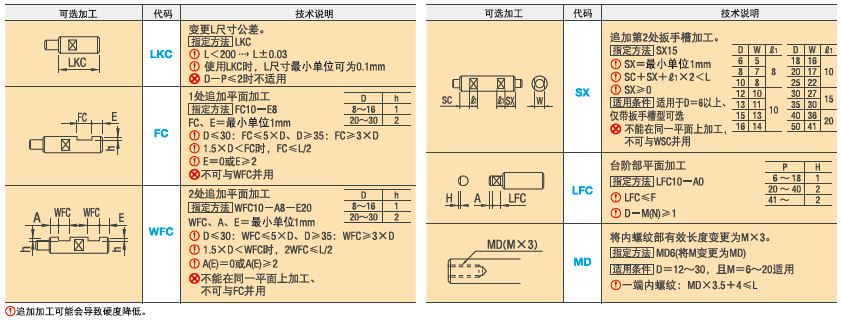

L Dimension Tolerance Change (Precision)

Alterations

Set Screw Flat at Left Sides

M/MD Choice

No change in length of internal thread

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

E (FC) Value

LFC Value

A (LFC) Value

SX Value

M/MD Value
