Precision Linear Shafts - Key Groove on One End AASAK/AASSAK/AAPSAK/AAPSSAK

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Precision Linear Shafts - Key Groove on One End AASAK6-20-F5
Part number	AASAK6-20-F5

CAD models

Request for quotation

Product selection

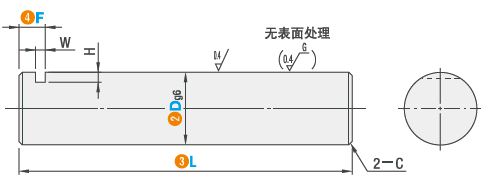

Index	Selector	D g6	L 1mm Increment	F	W	H	C
1	1	6	20～600	5≤F≤L/2	3.1	2	Below 0.5mm
2	2	8	20～800	5≤F≤L/2	3.1	2	Below 0.5mm
3	3	10	20～800	5≤F≤L/2	3.1	3	Below 0.5mm
4	4	12	20～1000	5≤F≤L/2	3.1	3	Below 0.5mm
5	5	13	25～1000	5≤F≤L/2	3.1	3	Below 0.5mm
6	6	15	25～1000	5≤F≤L/2	3.1	3	Below 0.5mm
7	7	16	30～1200	5≤F≤L/2	3.1	3	Below 0.5mm
8	12	18	30～1200	5≤F≤L/2	3.1	3	Below 0.5mm
9	13	20	30～1200	5≤F≤L/2	3.1	4	Below 1.0mm
10	14	25	35～1200	5≤F≤L/2	3.1	5	Below 1.0mm
11	8	30	35～1500	7≤F≤L/2	5.1	6	Below 1.0mm
12	9	35	35～1500	7≤F≤L/2	5.1	7	Below 1.0mm
13	10	40	50～1500	7≤F≤L/2	5.1	8	Below 1.0mm
14	11	50	65～1500	7≤F≤L/2	5.1	10	Below 1.0mm

L

Code

L Dimension Tolerance Change (Precision)

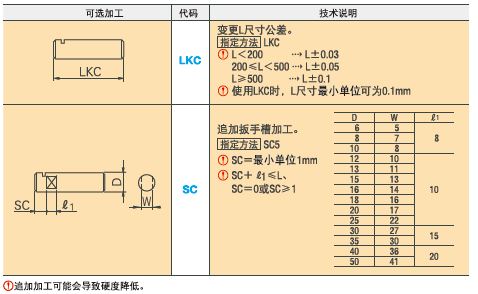

Alterations

F

SC Value

Not Available

Documentation

Technical document
