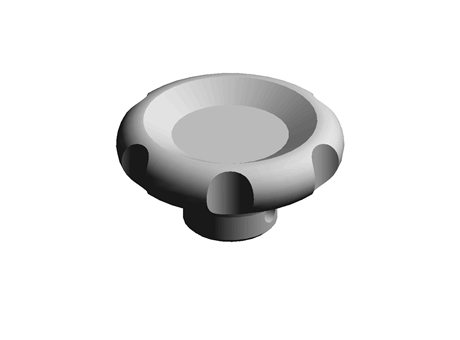

Plastic Small Handle-Corrugated Handwheel-GDCPK/GDCPM

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Plastic Small Handle-Corrugated Handwheel GDCPK63
Part number	GDCPK63

CAD models

Product selection

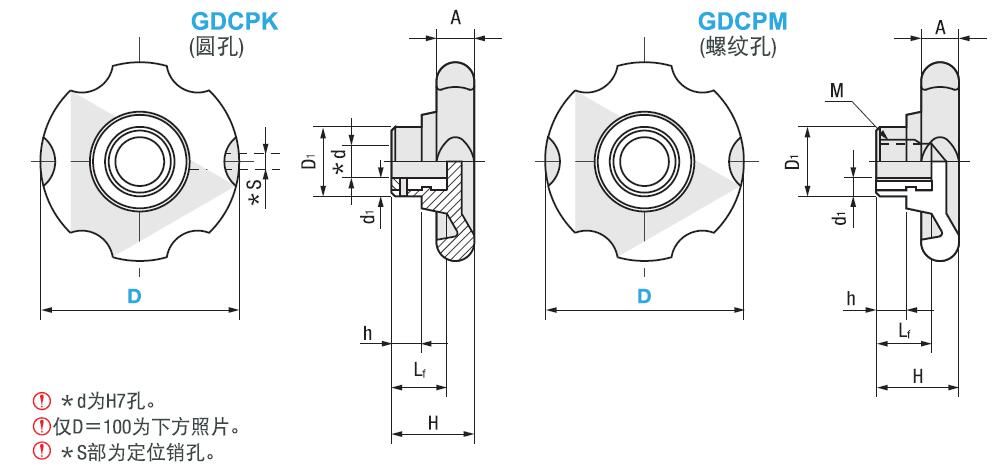

Index	Selector	Type	D	A	H	Lf	h	D1	d	M	S	d1
1	1	GDCPK:Round Hole	63	15	32	20	9.7	26	10	-	6	8
2	2	GDCPK:Round Hole	80	18	37	20	13	34	12	-	8	11
3	3	GDCPK:Round Hole	100	20	47	25	16	36	16	-	11	11
4	4	GDCPM:Screw Hole	63	15	32	20	9.7	26	-	10	-	9
5	5	GDCPM:Screw Hole	80	18	37	20	13	34	-	12	-	12
6	6	GDCPM:Screw Hole	100	20	47	25	16	36	-	16	-	11
