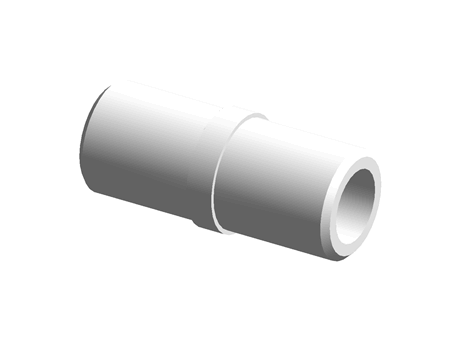

Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-With Sealing Coating Type-Fitting for Steel Pipe-Round Nozzle-FBCNP/FBUNP

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-With Sealing Coating Type-Fitting for Steel Pipe-Round Nozzle FBCNP6A
Part number	FBCNP6A

CAD models

Product selection

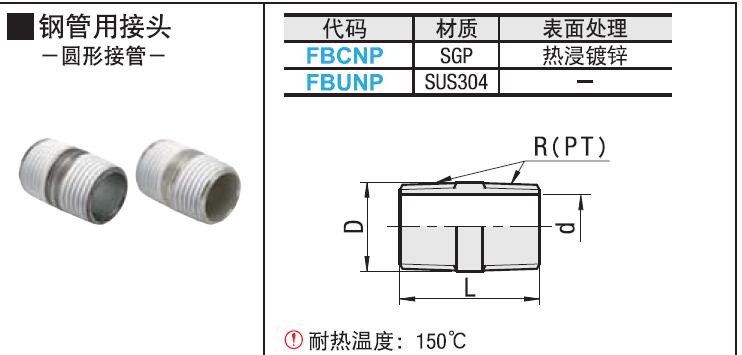

Index	Selector	No.	R(PT)	D	L	d_FBCNP	d_FBUNP
1	1	6A	1/8	10.5	24	6.5	6.5
2	2	8A	1/4	13.8	26	8.7	9.7
3	3	10A	3/8	17.3	28	12.1	13.1
4	4	15A	1/2	21.7	34	15.8	15.5
5	5	20A	3/4	27.2	38	21.6	21.3
6	6	25A	1	34	42	27.8	28.1

Material and Treatment

An one-stop purchasing service company who provides automation components for non-standard automation equipments manufacturers.
