Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-Same Diameter Type-Six Angle Nozzle-FBPNR/FBTNR/FBUNRS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-Same Diameter Type-Six Angle Nozzle- FBPNR6A
Part number	FBPNR6A

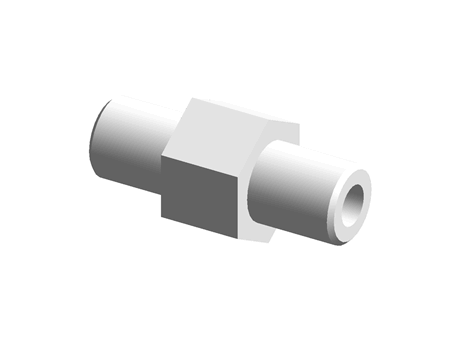

CAD models

Product selection

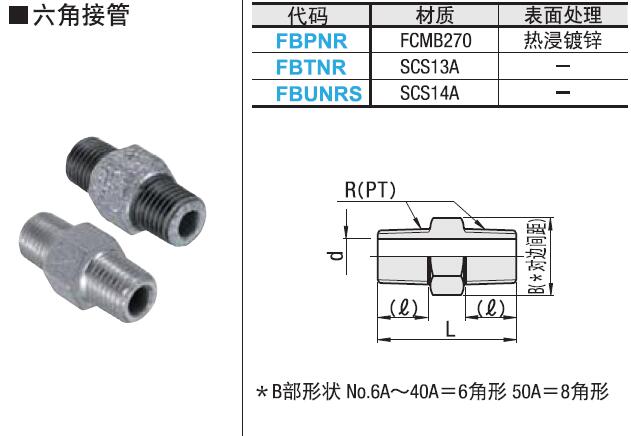

Index	Selector	No.	R(PT)	B	L	l	d_FBPNR	d_FBTNR	d_FBUNRS
1	1	6A	1/8	14	32	11	5	5	5
2	2	8A	1/4	17	34	12	7	7	6.8
3	3	10A	3/8	21	36	13	9	9	9
4	4	15A	1/2	26	42	16	13	13	13.2
5	5	20A	3/4	32	47	18	18	16	15.8
6	6	25A	1	38	52	20	24	22	21.7
7	7	32A	1 1/4	46	56	22	32	30	30.1
8	8	40A	1 1/2	54	60	23	37	35	-
9	9	50A	2	63	66	25	48	47	-

Material and Treatment
