By Shenzhen Shiruida Automation Equipment Co.,Ltd.

Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-Different Diameter Type-Different Diameter Elbow Type-FBGED/FBUED

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for Low Pressure-Different Diameter Type-Different Diameter Elbow Type- FBGED24
Part number	FBGED24

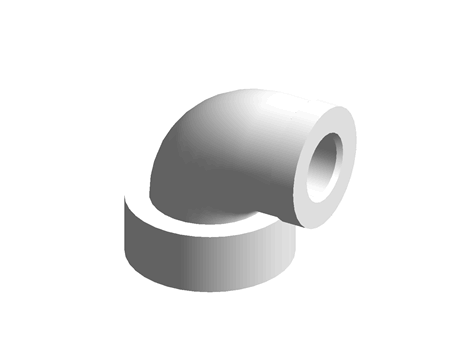

CAD models

Request for quotation

Product selection

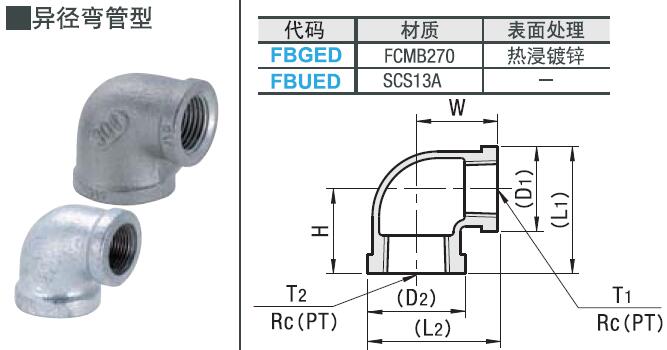

Index	Selector	No.	Rc(PT)T1	Rc(PT)T2	D1_FBGED	D2_FBGED	L1_FBGED	L2_FBGED	W_FBGED	H_FBGED	D1_FBUED	D2_FBUED	L1_FBUED	L2_FBUED	W_FBUED	H_FBUED
1	1	24	1/4	1/2	23	31	36	40	24	24	22	30	35	39	24	24
2	2	34	3/8	1/2	27	31	39	42	25	26	26	30	39	40	25	26
3	3	36	3/8	3/4	27	37	42	47	28	28	26	36	41	46	28	28
4	4	46	1/2	3/4	28	35	44	49	30	29	30	36	44	48	30	29
5	5	48	1/2	1	28	42	46	54	33	32	30	44	47	55	32	33
6	6	68	3/4	1	34	43	52	57	35	34	36	44	52	57	35	34

Material and Treatment

Documentation

Technical Documents
