Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for High Pressure-Same Diameter Type-Casing Type-FBGPSH/FBUPSH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for High Pressure-Same Diameter Type-Casing Type FBGPSH6A
Part number	FBGPSH6A

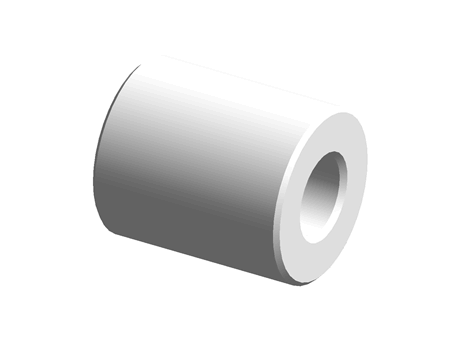

CAD models

Product selection

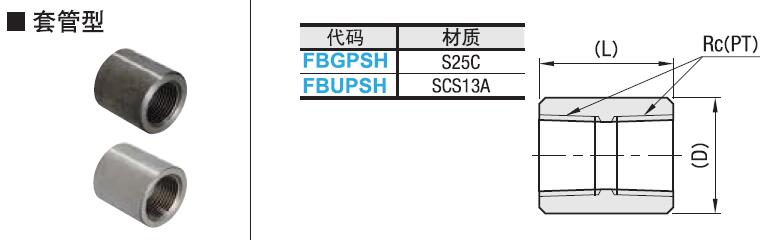

Index	Selector	No.	Rc(PT)	D_FBGPSH	L_FBGPSH	D_FBUPSH	L_FBUPSH
1	1	6A	1/8	19	22	19	26
2	2	8A	1/4	22	25	22	28
3	3	10A	3/8	28	28	25	33
4	4	15A	1/2	32	32	32	37
5	5	20A	3/4	38	38	38	42
6	6	25A	1	46	45	45	45
7	7	32A	1 1/4	58	50	55	52
8	8	40A	1 1/2	63	55	65	56
9	9	50A	2	76	60	75	66

Material
