By Shenzhen Shiruida Automation Equipment Co.,Ltd.

Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for High Pressure-Different Diameter Type-Different Diameter Fitting-FBGPBJ/FBUPBJ

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

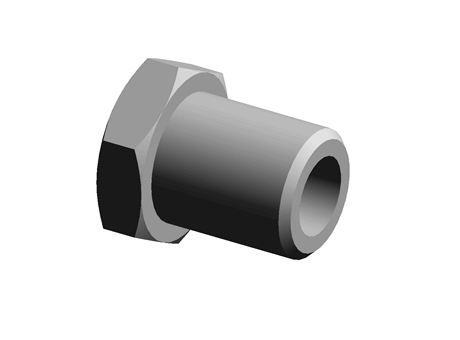

Description	Pipe/Fittings/Valve/Sealing Ring-Screw-in Type Fitting for High Pressure-Different Diameter Type-Different Diameter Fitting- FBGPBJ12
Part number	FBGPBJ12

CAD models

Request for quotation

Product selection

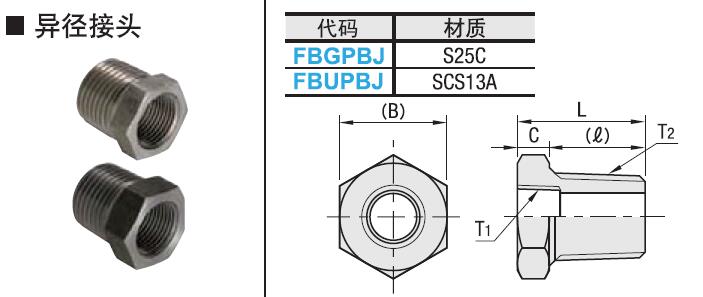

Index	Selector	No.	Rc(PT)T1	Rc(PT)T2	B_FBGPBJ	L_FBGPBJ	C_FBGPBJ	l_FBGPBJ	B_FBUPBJ	L_FBUPBJ	C_FBUPBJ	l_FBUPBJ
1	1	12	1/8	1/4	17	20	5	15	17	17	5	12
2	2	23	1/4	3/8	19	22	7	15	19	18	5	13
3	3	24	1/4	1/2	23	26	9	17	23	21	5	16
4	4	26	1/4	3/4	29	29	9	20	29	24	6	18
5	5	34	3/8	1/2	23	26	9	17	23	21	5	16
6	6	36	3/8	3/4	29	29	9	20	29	24	6	18
7	7	38	3/8	1	35	32	10	22	35	27	7	20
8	8	46	1/2	3/4	29	29	9	20	29	24	6	18
9	9	48	1/2	1	35	32	10	22	35	27	7	20
10	10	68	3/4	1	35	32	10	22	35	30	7	20

Material

Documentation

Technical Documents
