Pipe/Fittings/Valve/Sealing Ring-Fitting for Stainless Steel Pipe-Isolation Fitting-FBUWE

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

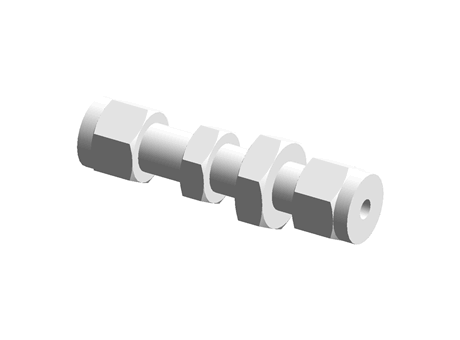

Description	Pipe/Fittings/Valve/Sealing Ring-Fitting for Stainless Steel Pipe-Isolation Fitting- FBUWE4
Part number	FBUWE4

CAD models

Product selection

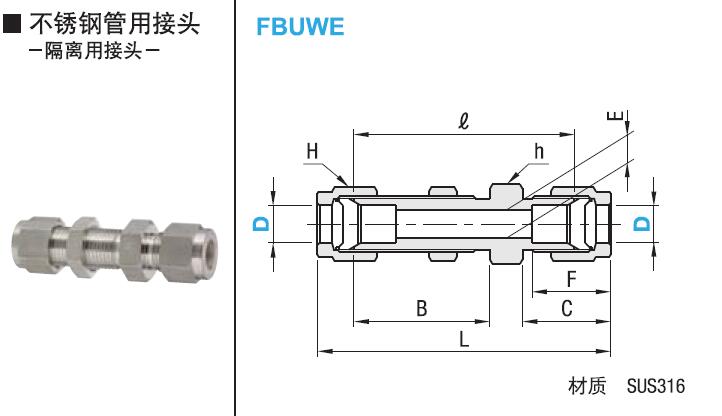

Index	Selector	D	L	B	C	F	E	h	H	l	Hole Diameter	Thickness
1	1	4	59.6	28	17.8	15.3	3.5	17	14	45	11.5	13
2	2	6	59.8	28	17.9	15.4	5	17	14	45	11.5	13
3	3	8	62.6	29	18.8	16.8	6	17	15.87	47	13.2	13.5
4	4	10	64.6	30	19.8	17.8	8	22	19	49	16.2	14.5
5	5	12	73.6	32	22.8	22.8	10	26	23	52	19.5	16
