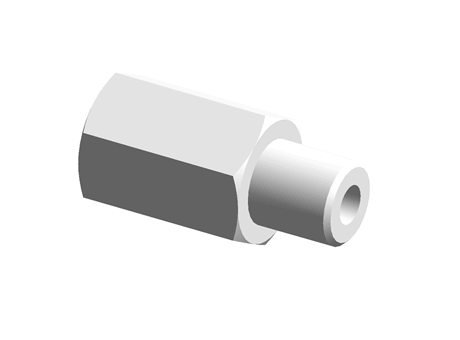

Pipe/Fittings/Valve/Sealing Ring-Extension Fitting-L Size Selected Type-External and Internal Thread Type-Same Diameter Type-FBXTG/FBTGS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Extension Fitting-L Size Selected Type-External and Internal Thread Type-Same Diameter Type- FBXTG1-20
Part number	FBXTG1-20

CAD models

Product selection

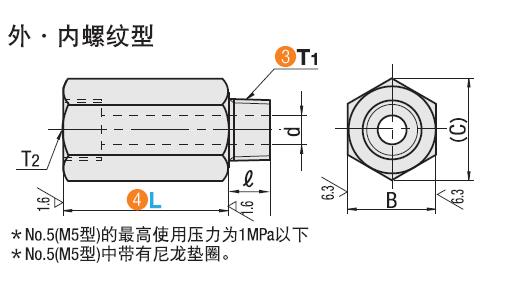

Index	Selector	No.	R/Rc(PT)/M-T1/T2	B	C	l	d
1	1	1	1/8	14	16.2	10	4.5
2	2	2	1/4	19	21.9	12	6.5
3	3	3	3/8	24	27.7	13	9
4	4	4	1/2	27	31.2	16	10
5	5	5	M5	8	9.2	5	2

Material and Treatment
