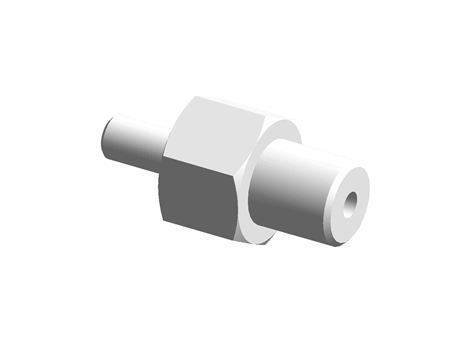

Pipe/Fittings/Valve/Sealing Ring-Extension Fitting-L Size Selected Type-External and External Thread Type-Different Diameter Type-FBXMDD

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Pipe/Fittings/Valve/Sealing Ring-Extension Fitting-L Size Selected Type-External and External Thread Type-Different Diameter Type- FBXMDD1-5-10
Part number	FBXMDD1-5-10

CAD models

Product selection

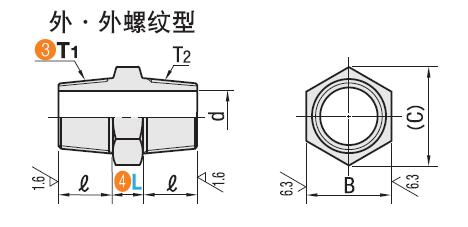

Index	Selector	No.	T2	B	C	d	l
1	1	1	1/8	14	16.2	3	10
2	2	2	1/4	19	21.9	4.5	10
3	3	3	3/8	24	27.7	4.5	12
4	4	4	1/2	27	31.2	6.5	17
