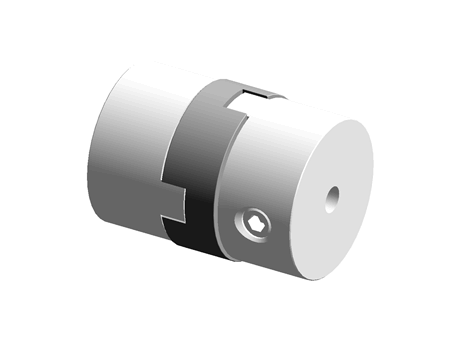

Oldham Couplings-Setscrew Fixed/Adjustment Ring CAC Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Oldham Couplings-Setscrew Fixed/Adjustment Ring CAC6-1-1
Part number	CAC6-1-1

CAD models

Request for quotation

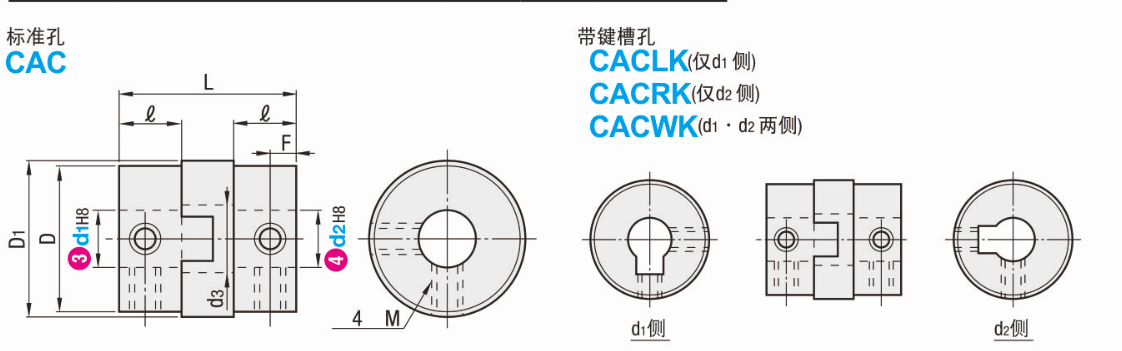

Product selection

Type

Index	Selector	No.	D	D1	d3	L	l	F	Setscrew M	Setscrew fastening torque (N.m)
1	22	6	6	6.2	2.4	8.4	3	1.5	M1.6	0.15
2	23	8	8	8.2	3.4	9.6	3.5	1.7	M1.6	0.15
3	24	10	10	10.2	4.4	10.2	3.7	1.8	M2	0.3
4	25	12	12	12.5	4	14.2	5.2	2.5	M3	0.7
5	26	15	14.5	15	5	16	5.4	2.6	M3	0.7
6	27	17	16.8	17.5	7.2	19.8	6.7	3.2	M4	1.7
7	28	20	20	21	8.2	21.4	7	3.4	M4	1.7
8	29	26	26	27	12	25.6	9	4	M4	1.7
9	30	30	30	31	13	33	12	6	M4	1.7
10	31	34	34	35	13	34	13	5.5	M5	4.0
11	32	38	38	41	16	40	15	7	M5	4.0
