Medium Load / Heavy Load Linear Guide - Standard Slide Type With Locating Hole AGEHN/AGE2HN/AGELHN/AGEL2HN

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Medium Load / Heavy Load Linear Guide - Standard Slide Type With Locating Hole AGEHN-500
Part number	AGEHN-500

CAD models

Request for quotation

Product selection

Index	Selector	Type	H	L	W	L1	B	C	Sxl	L2	K	T	M	e	T1	N	a	F	M	l	H1	W1	W2	dxDxh	P
1	1	Medium Load Type	24	100～1480	34	40.1	26	-	4x6	23.1	19.5	6	M4x0.7	5.7	5.5	17	3	-	-	4	12.5	15	9.5	4.5x7.5x6	60
2	2	Medium Load Type	28	100～1960	42	50	32	-	5x7	29	22	7.5	M6x1	12	6	21	4	-	-	5	15.5	20	11	6x9.5x8.5	60
3	3	Medium Load Type	33	100～1960	48	59.1	35	-	6x9	35.5	26	8	M6x1	12	8	24	4	-	-	5	18	23	12.5	7x11x9	60
4	4	Heavy Load Type	24	100～1480	52	56.8	26	26	4x6	39.8	19.5	6	M4x0.7	5.7	5.5	17	3	4	24	4	12.5	15	9.5	4.5x7.5x6	60
5	5	Heavy Load Type	28	100～1960	59	69.1	32	32	5x7	48.1	22	7.5	M6x1	12	6	21	4	5	28	5	15.5	20	11	6x9.5x8.5	60
6	6	Heavy Load Type	33	100～1960	73	82.6	35	35	6x9	59	26	8	M6x1	12	8	24	4	5	35	5	18	23	12.5	7x11x9	60

Slider Number

L

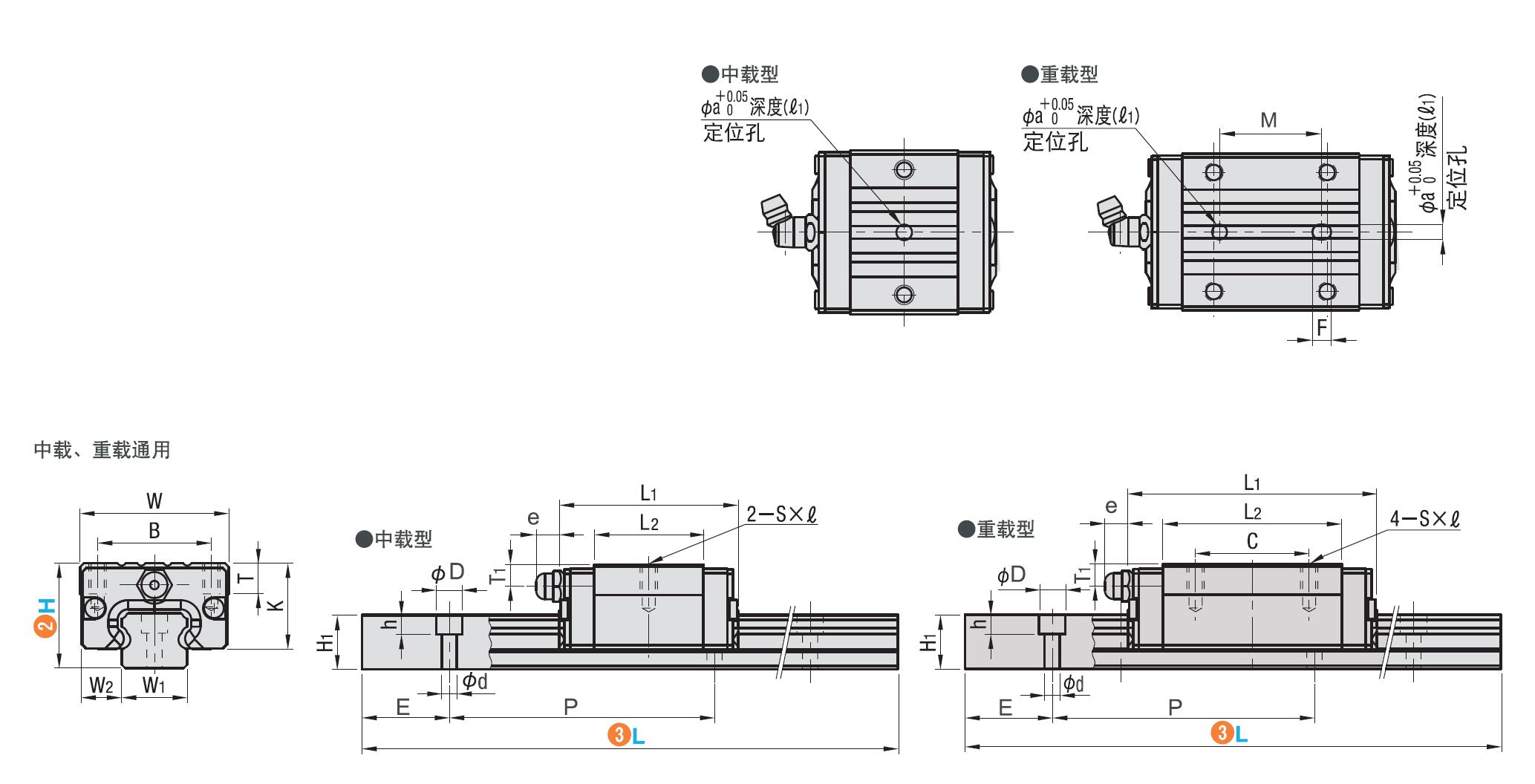

Machining Screw Hole
