Manifold Blocks - Pneumatic Terminal Block - Vertical Through Hole Type - Pitch Configurable 20/35 Square-FCANCP/FCANLP Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

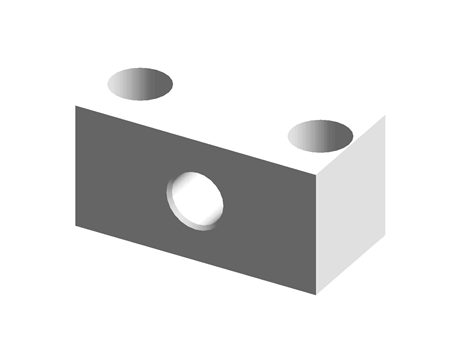

Description	Manifold Blocks - Pneumatic Terminal Block - Vertical Through Hole Type - Pitch Configurable FCANCP1-R1-S1-P0
Part number	FCANCP1-R1-S1-P0

CAD models

Request for quotation

Product selection

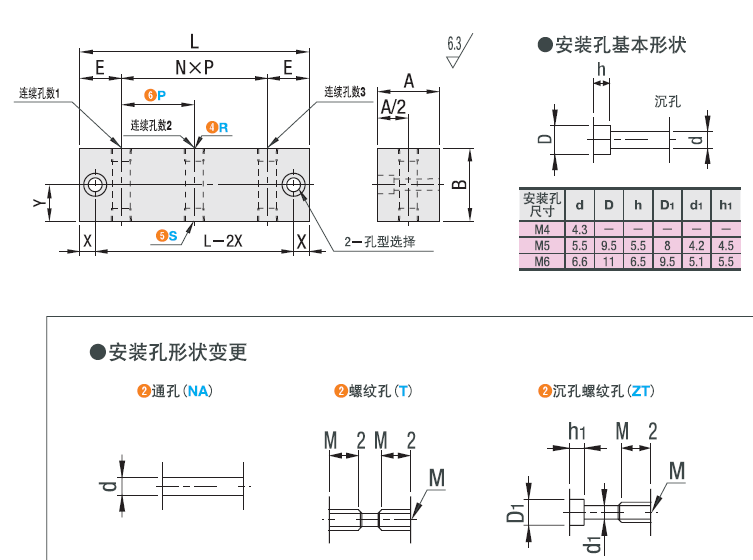

Index	Selector	Type	Material	Max Operating Pressure	Number of continuous holes	Pitch P	No. of Pitches N	R · S Thread hole number	A	B	E	X	Y	Mounting hole M	d Mounting hole	D Mounting hole	h Mounting hole	D1 Mounting hole	d1 Mounting hole	h1 Mounting hole
1	1	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	1	-	0	2	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
2	2	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	2	15～50	1	4	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
3	3	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	3	15～50	2	6	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
4	4	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	4	15～50	3	8	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
5	5	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	5	15～50	4	10	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
6	6	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	6	15～50	5	12	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
7	7	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	7	15～50	6	14	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
8	8	length of side is 20	Aluminium alloy	1MPa≈10kgf/cm2 or less	8	15～50	7	16	20	20	20	5	10	M5	5.5	9.5	5.5	8	4.2	4.5
9	9	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	1	-	0	2	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
10	10	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	2	35～60	1	4	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
11	11	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	3	35～60	2	6	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
12	12	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	4	35～60	3	8	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
13	13	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	5	35～60	4	10	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
14	14	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	6	35～60	5	12	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
15	15	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	7	35～60	6	14	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5
16	16	length of side is 35	Aluminium alloy	1MPa≈10kgf/cm2 or less	8	35～60	7	16	35	35	25	7.5	17.5	M6	6.6	11	6.5	9.5	5.1	5.5

Code

FCANCP：Aluminium alloy aluminum alloy aluminum alloy

Mounting Hole

R (Rc(PT), NPT, M) Selection

S (Rc(PT), NPT, M) Selection

Pitch P
