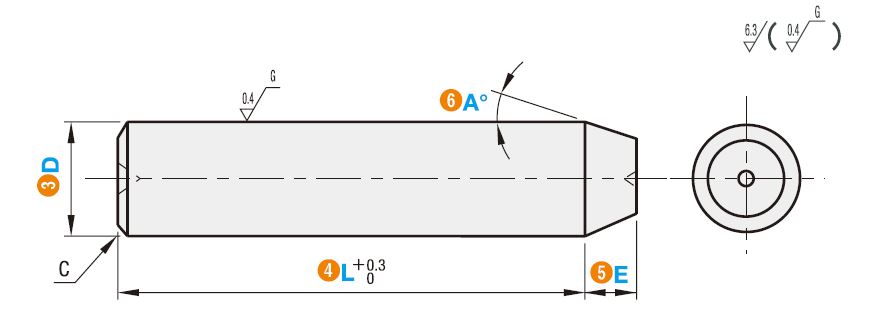

Locating Pins - Straight, Tapered (D Tolerance Selection) DALSTA Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins - Straight, Tapered (D Tolerance Selection) DALSTAM1-L3-E0.5-A15
Part number	DALSTAM1-L3-E0.5-A15

CAD models

Product selection

Index	Selector	D	L	E	C
1	1	1	3.0～10.0	0.5～10.0	0.1
2	2	2	3.0～20.0	0.5～10.0	0.5
3	3	3	3.0～20.0	0.5～10.0	0.5
4	4	4	3.0～25.0	0.5～10.0	1
5	5	5	4.0～30.0	0.5～10.0	1
6	6	6	5.0～40.0	0.5～10.0	1
7	7	8	5.0～40.0	0.5～10.0	1.5
8	8	10	5.0～40.0	0.5～10.0	2

Type

L Value

D Tolerance Selection

E Value
