Locating Pins - High Hardness Stainless Steel Sphere Large Head (Threaded) D/P Tolerance Slection DAAKQNA/DAAKQND Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins - High Hardness Stainless Steel Sphere Large Head (Threaded) D/P Tolerance Slection DAAKQNAMM3-P3.5-L3-B1
Part number	DAAKQNAMM3-P3.5-L3-B1

CAD models

Product selection

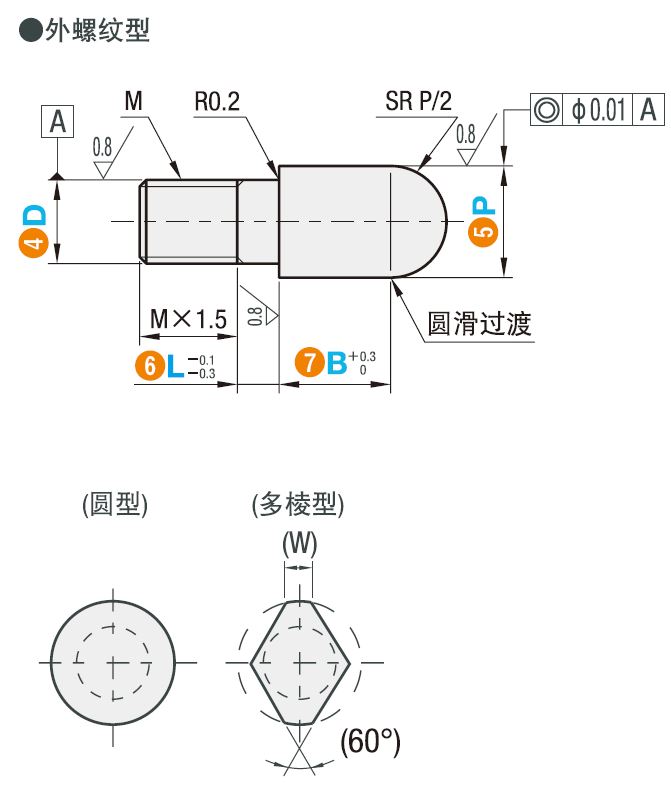

Index	Selector	D	P	L	B	(W)	M	Tightening Torque N·cm
1	1	3	3.5～8.0	3～10	1.0～15.0	1.5	M3	147
2	2	4	4.5～8.0	3～10	1.0～15.0	1.8	M4	333
3	3	5	5.5～8.0	3～10	1.0～15.0	2.2	M5	676
4	4	6	6.5～10.0	3～10	1.0～15.0	3	M6	1156
5	5	8	8.5～10.0	4～10	1.0～15.0	3.5	M8	2803

Type

P Value

L Value

B value

D Tolerance Slection

P Tolerance Slection
