Locating Pins for Fixtures - Tip Shape Selectable, Precision Grade, Shouldered - Threaded DASANA/DASAND Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

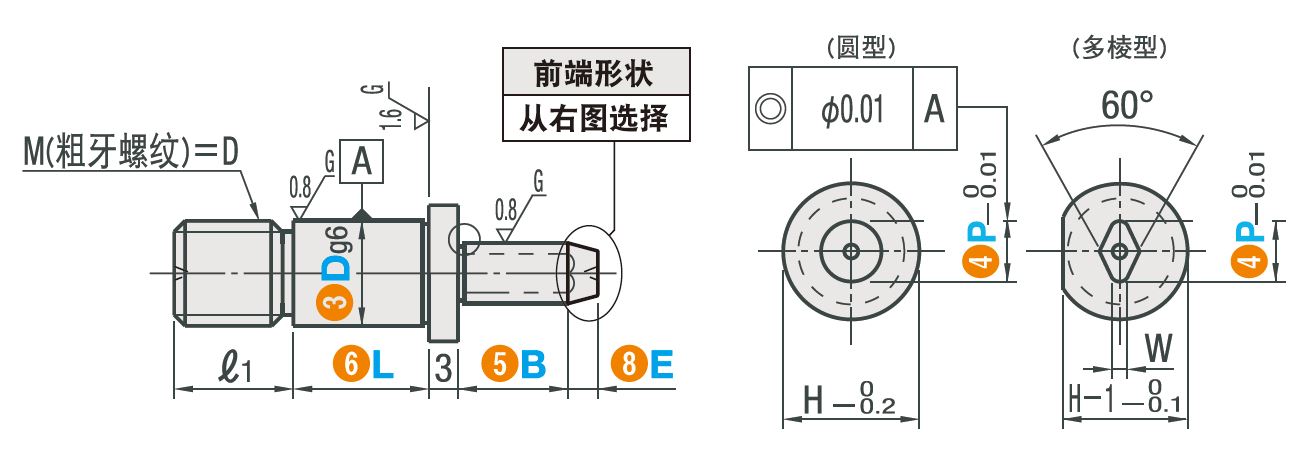

Description	Locating Pins for Fixtures - Tip Shape Selectable, Precision Grade, Shouldered - Threaded DATSANAA6-P3-B2-L5-A30-E1
Part number	DATSANAA6-P3-B2-L5-A30-E1

CAD models

Product selection

Index	Selector	D	P	B	H	l1	R	W
1	7	6	3.0～8.0	2～30	9	6	1	-
2	8	8	3.0～10.0	2～30	11	10	1.5	-
3	9	10	4.5～12.0	2～30	13	12	2	-
4	10	10T	4.5～12.0	2～30	13	18	2	-
5	11	12	9.0～14.0	2～30	15	15	3	-
6	12	16	13.0～18.0	2～30	19	18	4	-
7	1	6	3.0～8.0	2～30	9	6	1	1～2
8	2	8	3.0～10.0	2～30	11	10	1.5	1～2
9	3	10	4.5～12.0	2～30	13	12	2	1～3
10	4	10T	4.5～12.0	2～30	13	18	2	1～3
11	5	12	9.0～14.0	2～30	15	15	3	4
12	6	16	13.0～18.0	2～30	19	18	4	5

Type

P Value

B Value

L Value

Falt Machining

Thread Dia.

Changes the thread length

Tip Shape

Wear Groove Machining

M Value

Angle

Upper Relief Radius Change

No Changes

FC Value

E Value

RTC Value
