Locating Pins for Fixtures - Tapped - Shouldered DAEABA/DAEABD Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins for Fixtures - Tapped - Shouldered DATEABA6-P3-B2-L10
Part number	DATEABA6-P3-B2-L10

CAD models

Product selection

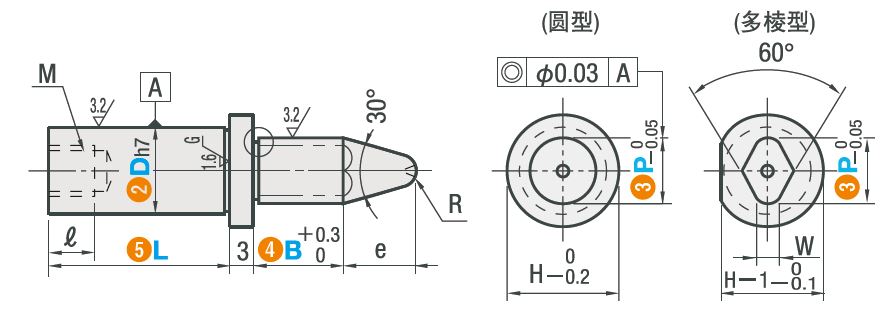

Index	Selector	D	P	B	L	M	H	l1	R	W
1	10	6	3.0～8.0	2.0～35.0	10～16	M3	9	5	1	-
2	11	8	3.0～10.0	2.0～35.0	12～20	M4	11	6	1.5	-
3	12	10	4.5～12.0	2.0～35.0	15～20	M5	13	8	2	-
4	13	10T	4.5～12.0	2.0～35.0	18～20	M6	13	8	2	-
5	14	12	7.0～14.0	2.0～35.0	15～20	M5	15	8	3	-
6	7	16	13.0～18.0	2.0～35.0	21～32	M8	19	12	4	-
7	8	20	16.0～22.0	2.0～35.0	21～40	M8	23	12	4	-
8	9	6	3.0～8.0	2.0～35.0	10～16	M3	9	5	1	1～2
9	1	8	3.0～10.0	2.0～35.0	12～20	M4	11	6	1.5	1～2
10	2	10	4.5～12.0	2.0～35.0	15～20	M5	13	8	2	1～3
11	3	10T	4.5～12.0	2.0～35.0	18～20	M6	13	8	2	1～3
12	4	12	7.0～14.0	2.0～35.0	15～20	M5	15	8	3	4
13	5	16	13.0～18.0	2.0～35.0	21～32	M8	19	12	4	5
14	6	20	16.0～22.0	2.0～35.0	21～40	M8	23	12	4	5

Type

P Value

B Value

Falt Machining

Changes the tip angle

Wear Groove Machining

Rc Value

Upper Relief Radius Change

No Changes

RTC Value
