Locating Pins for Fixtures - Tapped - No Shouldered DAENBA/DAENBD Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins for Fixtures - Tapped - No Shouldered DATENBA6-P8-B2-L9
Part number	DATENBA6-P8-B2-L9

CAD models

Product selection

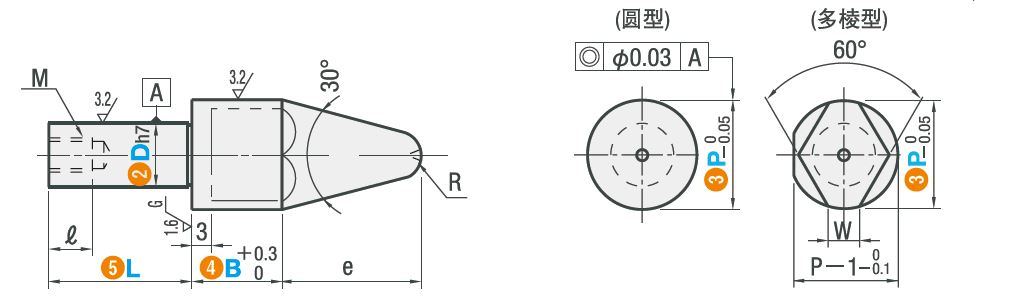

Index	Selector	D	P	B	L	M	l1	R	W
1	10	6	8.0～12.0	2.0～35.0	9～16	M3	5	3	-
2	11	8	10.0～16.0	2.0～35.0	9～20	M4	6	4	-
3	12	10	12.0～20.0	2.0～35.0	10～20	M5	8	4	-
4	13	10T	12.0～20.0	2.0～35.0	10～24	M6	8	5	-
5	14	12	14.0～25.0	2.0～35.0	10～32	M5	8	6	-
6	7	16	18.0～32.0	2.0～35.0	10～40	M8	12	8	-
7	8	20	22.0～35.0	2.0～35.0	10～40	M8	12	8	-
8	9	6	8.0～12.0	2.0～35.0	9～16	M3	5	3	3
9	1	8	10.0～16.0	2.0～35.0	9～20	M4	6	4	3.5
10	2	10	12.0～20.0	2.0～35.0	10～20	M5	8	4	4
11	3	10T	12.0～20.0	2.0～35.0	10～24	M6	8	5	4
12	4	12	14.0～25.0	2.0～35.0	10～32	M5	8	6	6
13	5	16	18.0～32.0	2.0～35.0	10～40	M8	12	8	8
14	6	20	22.0～35.0	2.0～35.0	10～40	M8	12	8	9

Type

P Value

B Value

Falt Machining

Changes the tip angle

Wear Groove Machining

Rc Value
