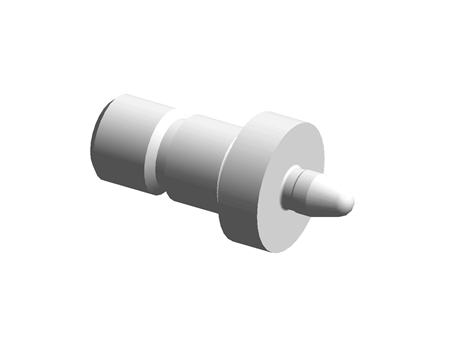

Locating Pins for Fixtures - Standard Grade, Shouldered - Threaded DATANAN/DATANDN Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins for Fixtures - Standard Grade, Shouldered - Threaded DATANAN6-P3-B2-L5
Part number	DATANAN6-P3-B2-L5

CAD models

Product selection

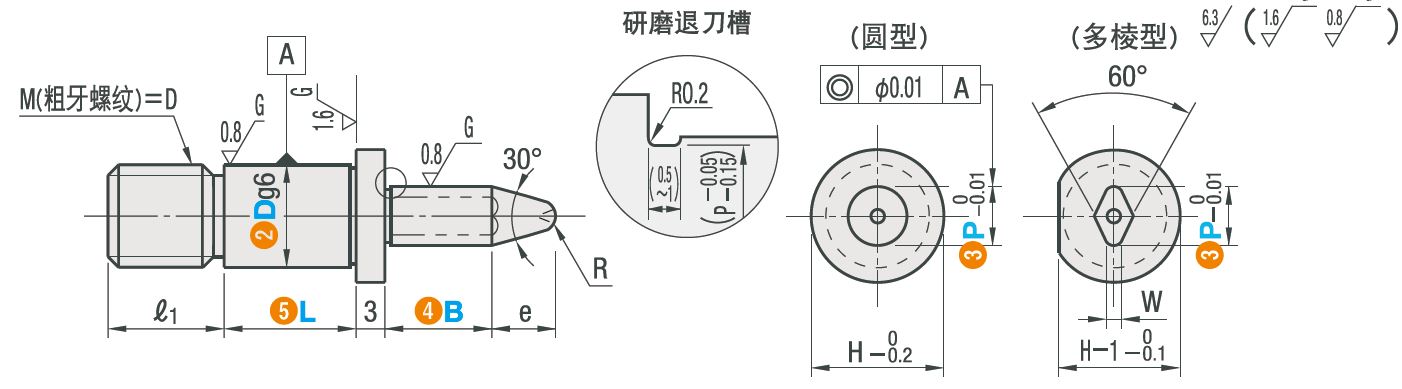

Index	Selector	D	P	B	l1	H	R	W
1	7	6	3.0～8.0	2～30	6	9	1	-
2	8	8	3.0～10.0	2～30	10	11	1.5	-
3	9	10	4.5～12.0	2～30	12	13	2	-
4	10	10T	4.5～12.0	2～30	18	13	2	-
5	11	12	9.0～14.0	2～30	15	15	3	-
6	12	16	13.0～18.0	2～30	18	19	4	-
7	1	6	3.0～8.0	5～30	6	9	1	1～2
8	2	8	3.0～10.0	5～30	10	11	1.5	1～2
9	3	10	4.5～12.0	5～30	12	13	2	1～3
10	4	10T	4.5～12.0	5～30	18	13	2	1～3
11	5	12	9.0～14.0	5～30	15	15	3	4
12	6	16	13.0～18.0	5～30	18	19	4	5

Type

P Value

B Value

L Value

Falt Machining

Thread Dia.

Wear Groove Machining

M Value
