Locating Pins for Fixtures - Oval,Standard Grade - No Shouldered - Set Screw DATNNTF Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Locating Pins for Fixtures - Oval,Standard Grade - No Shouldered - Set Screw DATNNTF6-P10-W8-B5
Part number	DATNNTF6-P10-W8-B5

CAD models

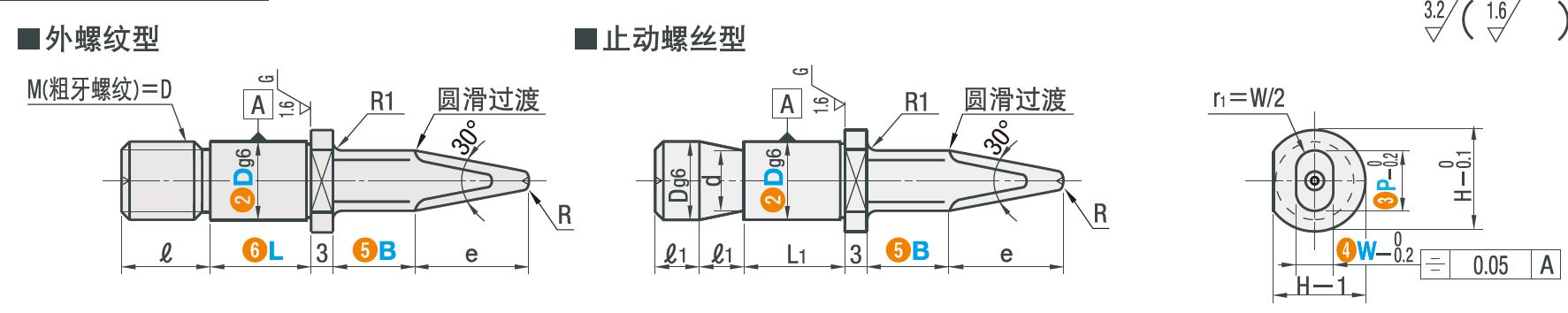

Product selection

Index	Selector	D	P	B	W	R	L	l1	d
1	2	6	10.0～12.0	5～30	D+2≤W≤P-2	3	8	8	4
2	3	8	12.0～16.0	5～30	D+2≤W≤P-2	3	8	8	5
3	4	10	14.0～20.0	5～30	D+2≤W≤P-2	3	10	8	7
4	5	12	16.0～24.0	5～30	D+2≤W≤P-2	5	12	10	9
5	1	16	20.0～32.0	5～30	D+2≤W≤P-2	6	12	10	13

Type

P Value

B Value

Tip angle changes
