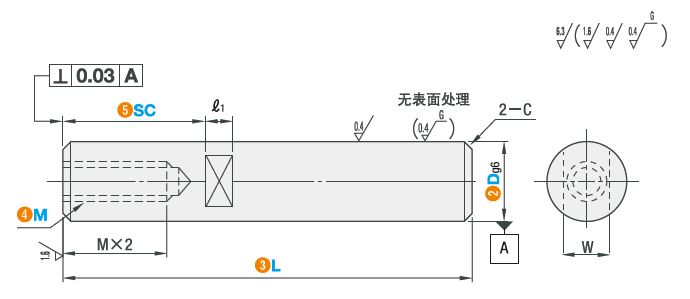

Linear Shaft - One Ends Tapped with Wrench Flats AAVJC/AAVSJC/AAVPJC/AAVPSJC

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Shaft - One Ends Tapped with Wrench Flats AAVJC6-25-M3-SC0
Part number	AAVJC6-25-M3-SC0

CAD models

Product selection

Index	Selector	D g6	L 1mm Increment	C
1	1	6	25～300	Below 0.5mm
2	2	8	25～300	Below 0.5mm
3	3	10	25～350	Below 0.5mm
4	4	12	25～350	Below 0.5mm
5	5	13	25～350	Below 0.5mm
6	6	15	25～350	Below 0.5mm
7	7	16	25～350	Below 0.5mm
8	8	20	30～450	Below 1.0mm
9	9	25	30～450	Below 1.0mm
10	10	30	30～450	Below 1.0mm

Code

L Dimension Tolerance Change (Precision)

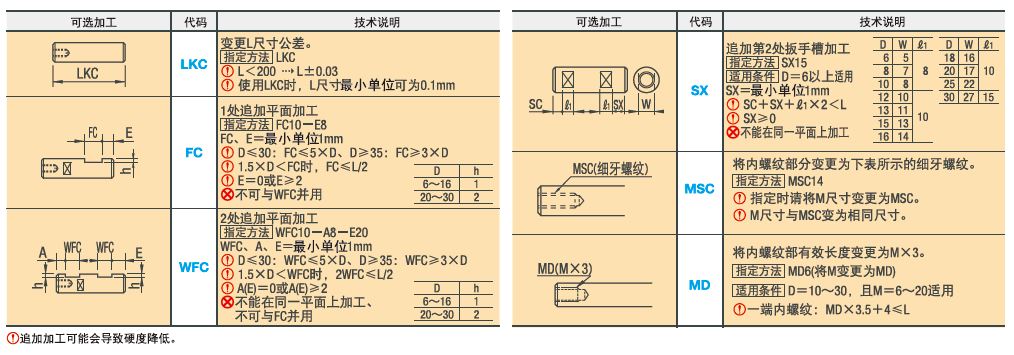

Alterations

Length of internal thread choice M/MD

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

SX Value

E(FC) Value
