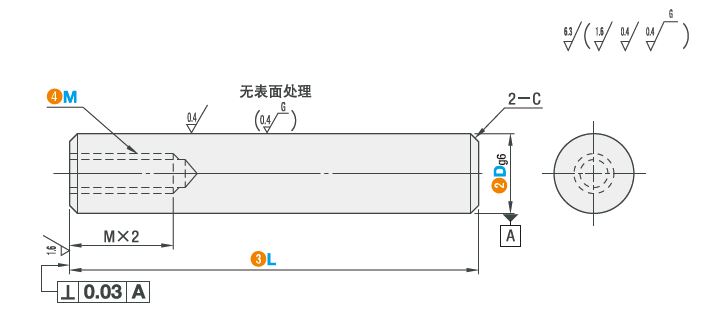

Linear Shaft - One Ends Tapped AAVJT/AAVSJT/AAVPJT/AAVPSJT

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Shaft - One Ends Tapped AAVJT4-25-M2
Part number	AAVJT4-25-M2

CAD models

Product selection

Index	Selector	D g6	L 1mm Increment	C
1	1	4	25～200	Below 0.2mm
2	2	5	25～300	Below 0.2mm
3	3	6	25～300	Below 0.5mm
4	4	8	25～300	Below 0.5mm
5	5	10	25～350	Below 0.5mm
6	6	12	25～350	Below 0.5mm
7	7	13	25～350	Below 0.5mm
8	8	15	25～350	Below 0.5mm
9	9	16	25～350	Below 0.5mm
10	10	20	30～450	Below 1.0mm
11	11	25	30～450	Below 1.0mm
12	12	30	30～450	Below 1.0mm

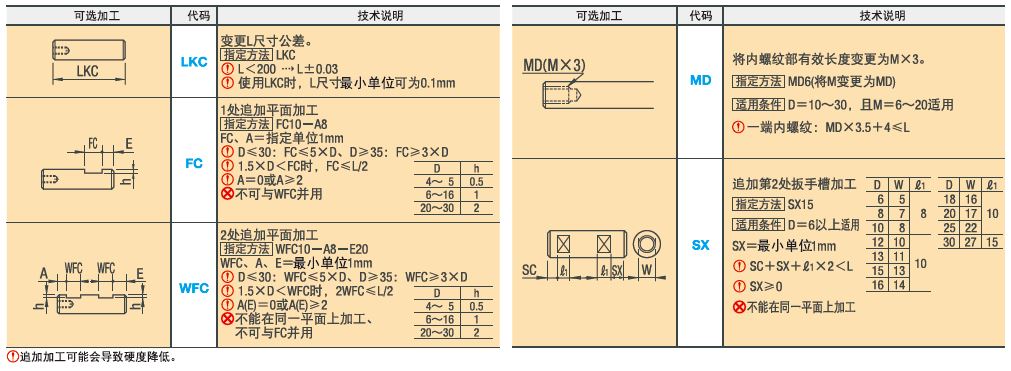

Code

L Dimension Tolerance Change (Precision)

Alterations

M/MD Choice

No change

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

SX Value

SC Value

E(WFC) Value
