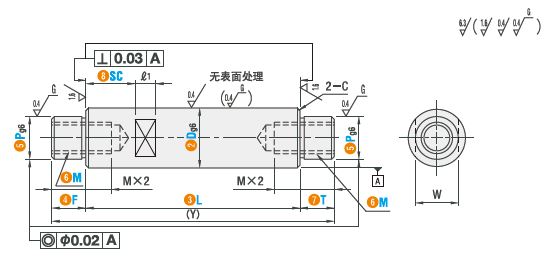

Linear Shaft - Both Ends Tapped And Stepped with Wrench Flats AAVPH/AAVSPH/AAVPPH/AAVPSPH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Shaft - Both Ends Tapped and Stepped with Wrench Flats AAVPH8-25-F2-P6-M3-T2-N3-SC0
Part number	AAVPH8-25-F2-P6-M3-T2-N3-SC0

CAD models

Product selection

Index	Selector	D g6	L 1mm Increment	F	T	P	(Y) Max	C
1	1	8	25～296	2≤F≤PX4	2≤T≤PX4	6	300	Below 0.5mm
2	2	10	25～346	2≤F≤PX4	2≤T≤PX4	6～8	350	Below 0.5mm
3	3	12	25～346	2≤F≤PX4	2≤T≤PX4	6～10	350	Below 0.5mm
4	4	13	25～346	2≤F≤PX4	2≤T≤PX4	6～11	350	Below 0.5mm
5	5	15	25～346	2≤F≤PX4	2≤T≤PX4	6～13	350	Below 0.5mm
6	6	16	25～346	2≤F≤PX4	2≤T≤PX4	6～14	350	Below 0.5mm
7	7	20	25～446	2≤F≤PX4	2≤T≤PX4	8～17	450	Below 1.0mm
8	8	25	25～446	2≤F≤PX4	2≤T≤PX4	8～22	450	Below 1.0mm
9	9	30	25～446	2≤F≤PX4	2≤T≤PX4	9～27	450	Below 1.0mm

Code

L Dimension Tolerance Change (Precision)

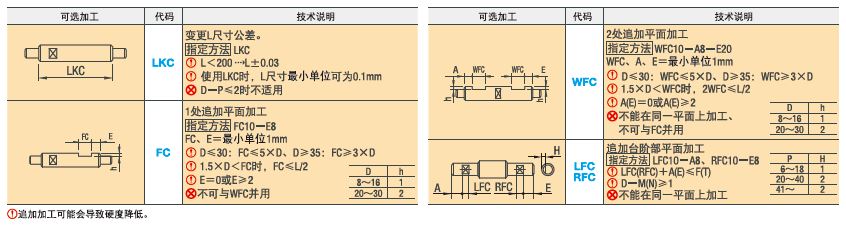

Alterations

Set Screw Flat at Left Sides

Set Screw Flat at Right Sides

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

E (FC) Value

LFC Value

A (LFC) Value

RFC Value

E (RFC) Value
