Linear Shaft - Both Ends Tapped And Stepped AASAH/AASSAH/AAPSAH/AAPSSAH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Shaft - Both Ends Tapped and Stepped AASAH8-25-F6-P6-M3-T6-N3
Part number	AASAH8-25-F6-P6-M3-T6-N3

CAD models

Product selection

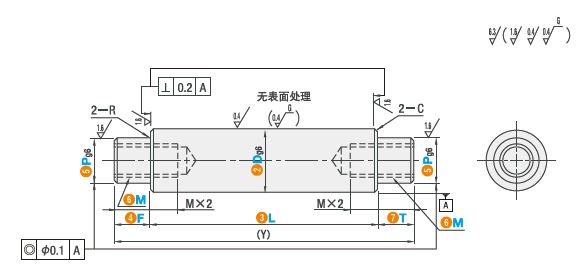

Index	Selector	D g6	L 1mm Increment	F	T	P	(Y) Max	R	C
1	1	8	25～996	2≤F≤PX4	2≤T≤PX4	6	1000	Below0.3mm	Below 0.5mm
2	2	10	25～996	2≤F≤PX4	2≤T≤PX4	6～8	1000	Below0.3mm	Below 0.5mm
3	3	12	25～1196	2≤F≤PX4	2≤T≤PX4	6～10	1200	Below0.3mm	Below 0.5mm
4	4	13	25～1196	2≤F≤PX4	2≤T≤PX4	6～11	1200	Below0.3mm	Below 0.5mm
5	5	15	25～1196	2≤F≤PX4	2≤T≤PX4	6～13	1200	Below0.3mm	Below 0.5mm
6	6	16	25～1196	2≤F≤PX4	2≤T≤PX4	6～14	1200	Below0.3mm	Below 0.5mm
7	7	20	25～1196	2≤F≤PX4	2≤T≤PX4	8～17	1200	Below0.3mm	Below 1.0mm
8	8	25	25～1196	2≤F≤PX4	2≤T≤PX4	8～22	1200	Below0.3mm	Below 1.0mm
9	9	30	25～1496	2≤F≤PX4	2≤T≤PX4	9～27	1500	Below0.3mm	Below 1.0mm
10	10	35	25～1496	2≤F≤PX4	2≤T≤PX4	9～32	1500	Below0.3mm	Below 1.0mm
11	11	40	25～1496	2≤F≤PX4	2≤T≤PX4	11～37	1500	Below0.3mm	Below 1.0mm
12	12	50	25～1496	2≤F≤PX4	2≤T≤PX4	11～47	1500	Below0.3mm	Below 1.0mm

Code

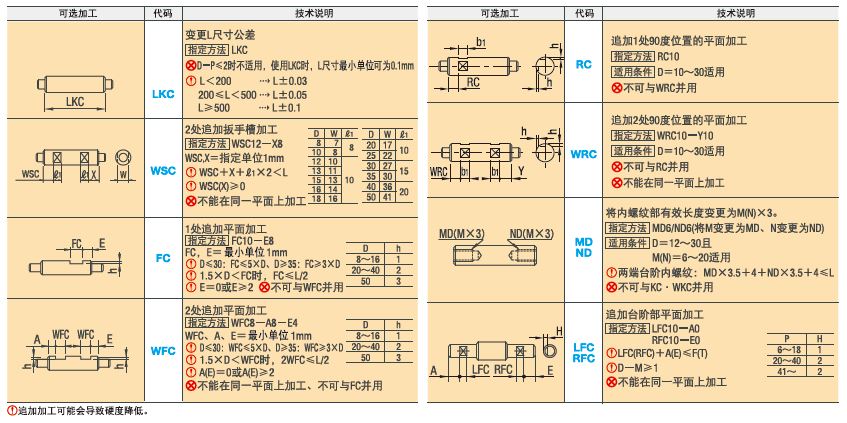

L Dimension Tolerance Change (Precision)

Alterations

Length of internal thread choice M/MD

No change in length of internal thread

Length of internal thread choice N/ND

No change in length of internal thread

Set Screw Flat at Left Sides

Set Screw Flat at Right Sides

X(WSC) Value

FC Value

WFC Value

A(WFC) Value

E(WFC) Value

RC Value

WRC Value

Y(WRC) Value

WSC Value

E (FC) Value

LFC Value

A (LFC) Value

RFC Value

E (RFC) Value
