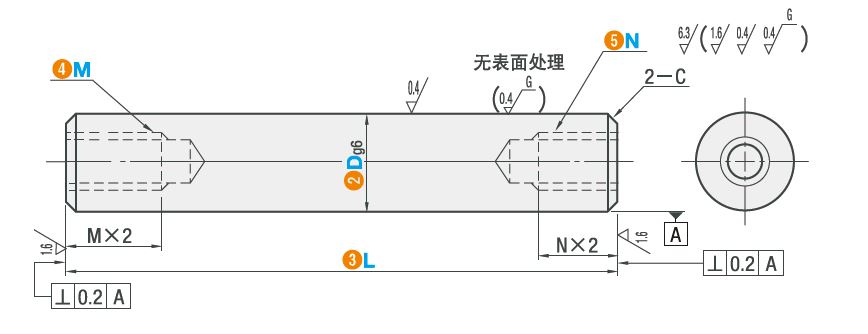

Linear Shaft - Both Ends Tapped AASJW/AASSJW/AAPSJW/AAPSSJW

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Shaft - Both Ends Tapped AASJW4-20-M2-N2
Part number	AASJW4-20-M2-N2

CAD models

Product selection

Index	Selector	D	L 1mm Increment	C
1	1	4	20～300	Below 0.2mm
2	2	5	20～400	Below 0.2mm
3	3	6	20～800	Below 0.5mm
4	4	8	20～1000	Below 0.5mm
5	5	10	20～1000	Below 0.5mm
6	6	12	20～1200	Below 0.5mm
7	7	13	25～1200	Below 0.5mm
8	8	15	25～1200	Below 0.5mm
9	9	16	30～1200	Below 0.5mm
10	10	20	30～1200	Below 1.0mm
11	11	25	35～1200	Below 1.0mm
12	12	30	35～1500	Below 1.0mm
13	13	35	35～1500	Below 1.0mm
14	14	40	50～1500	Below 1.0mm
15	15	50	65～1500	Below 1.0mm

Code

LKC

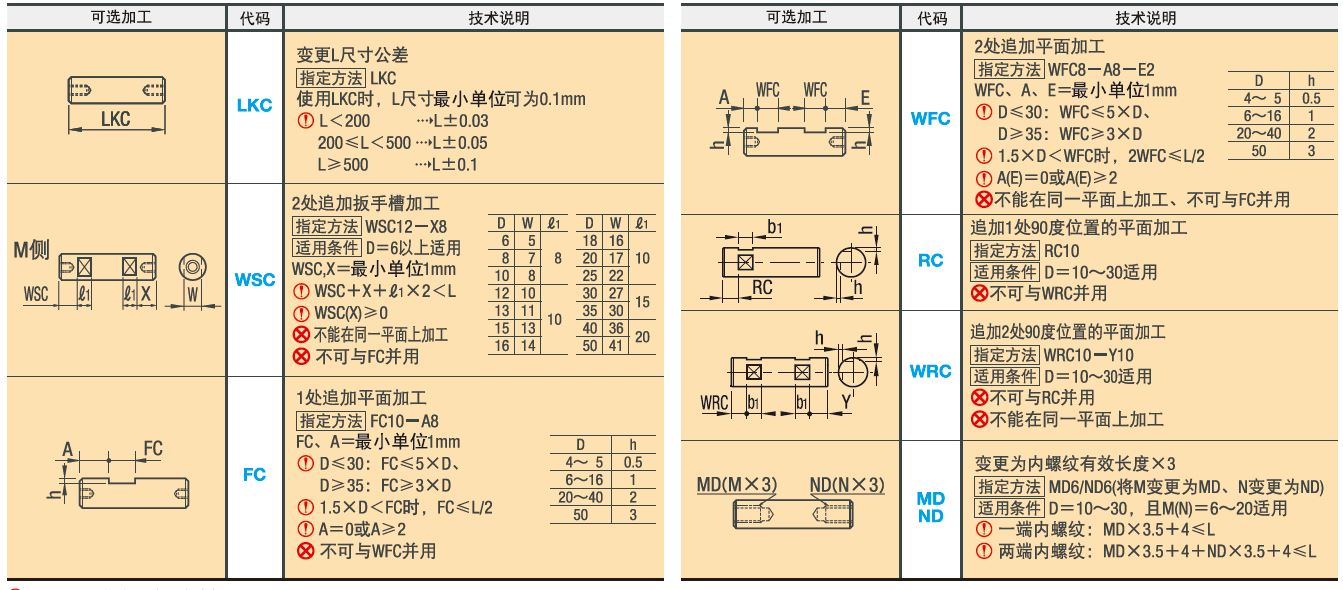

Alterations

No change in length of internal thread

A(FC)

WFC

A(WFC)

WRC

WSC
