Linear Guide Rail Locating Pin AGLT/AGLTS

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Linear Guide Rail Locating Pin AGLT1.4
Part number	AGLT1.4

CAD models

Product selection

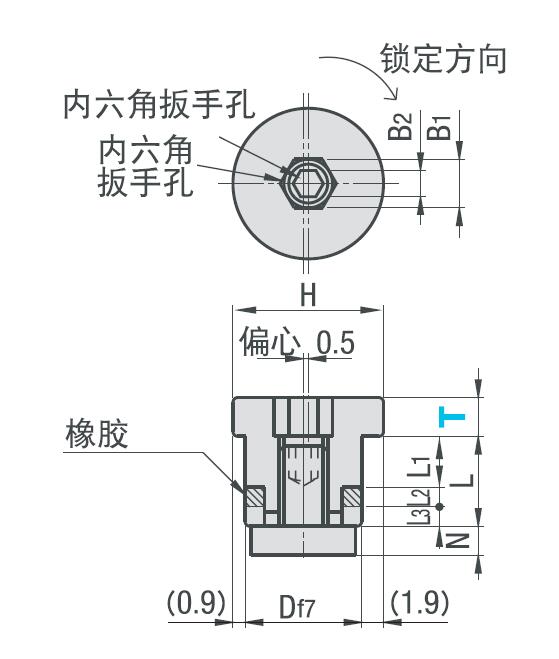

Index	Selector	T	H	Df7	Df7	L	N	L1	L2	L3	B1	B2	D1	Fmin	W	Ncm	KN	g
1	1	1.4	12.8	10	-0.013，-0.028	8	2.5	5	1.4	1.6	5	2.5	10	11	6.5	90	1.8	7
2	2	1.8	12.8	10	-0.013，-0.028	8	2.5	5	1.4	1.6	5	2.5	10	11	6.5	120	2.5	7
3	3	3.5	12.8	10	-0.013，-0.028	8	2.5	5	1.4	1.6	5	2.5	10	11	6.5	190	3.9	8
4	4	5	14.8	12	-0.016，-0.034	9	2.5	6	1.4	1.6	5	2.5	12	12	7.5	270	5.5	14

Type-Material and Treatment
