Lead Screw-30 Degree Lead Screw-Both Ends Two Step Type-AJTSRX Series

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

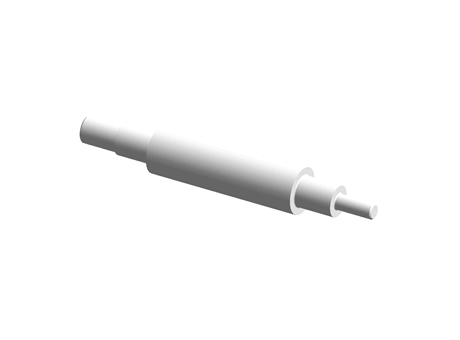

Description	Lead Screw-30 Degree Lead Screw-Both Ends Two Step Type- AJTSLX12-80-F2-V7-T2-G2-Q8-S2-E4
Part number	AJTSLX12-80-F2-V7-T2-G2-Q8-S2-E4

CAD models

Product selection

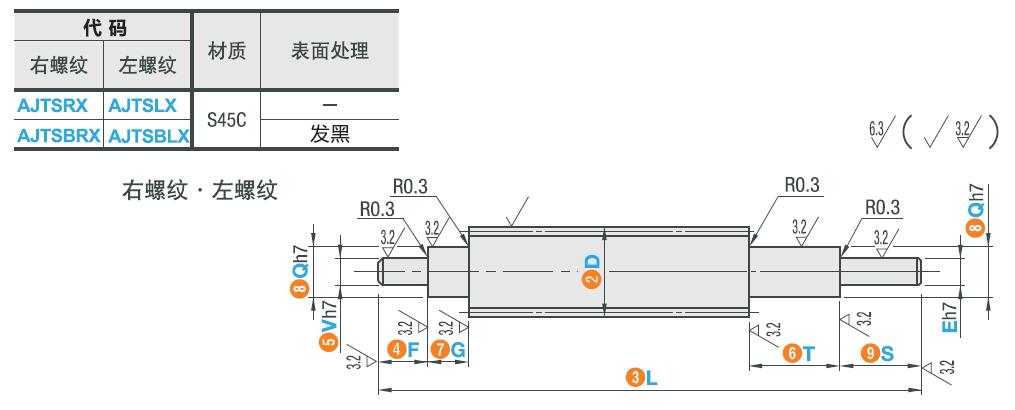

Type

Material and Treatment

Index	Selector	D	L	P
1	1	12	80～1000	2
2	2	14	80～1200	3
3	3	16	100～1200	3
4	4	18	150～1200	4
5	5	20	150～1200	4
6	6	22	150～1200	5
7	7	25	150～1200	5
8	8	28	150～1200	5
9	9	32	200～1200	6
10	10	36	200～1200	6
11	11	40	200～1200	6
12	12	50	200～1200	8

Machining Plane

Machining V Side Baffle Groove

Machining E Side Baffle Groove

Not Available

Machining E Side Coarse Thread Hole

Not Available

Machining V Side Coarse Thread Hole

Machining E Side Q Part External Thread

Machining V Side Q Part External Thread

Side

FV/FE

SV/SE

KQ/KV/KE

W_V

W_E

n_AC

n_AE
