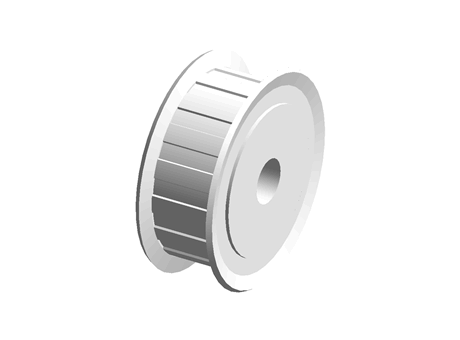

Keyless Synchronous Pulley T10 Type - F Shape - CBTTA/CBTTK/CBTTT_T10150/T10200/T10250/T10300/T10400/T10500

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Keyless Synchronous Pulley T10 Type - F Shape - CBTTA16T10150-F-12
Part number	CBTTA16T10150-F-12

CAD models

Product selection

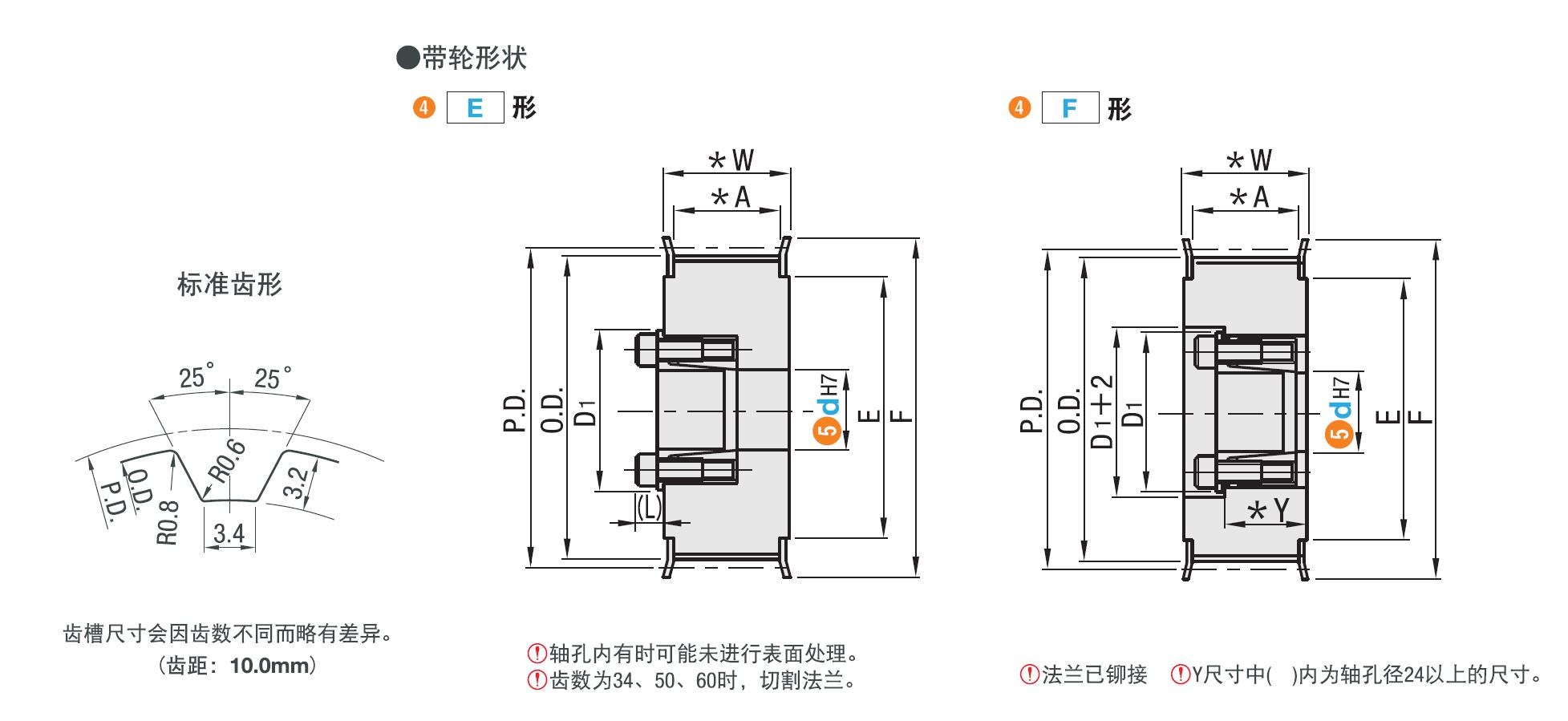

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	16	50.93	49.05	58	40
2	11	18	57.3	55.45	61	45
3	2	20	63.66	61.8	67	50
4	3	22	70.03	68.15	80	60
5	4	24	76.39	74.55	87	67
6	5	25	79.58	77.7	87	67
7	6	26	82.76	80.9	87	67
8	7	28	89.13	87.25	95	75
9	8	30	95.49	93.65	104	84
10	12	32	101.86	100	111	90
11	13	34	108.22	106.4	115	95
12	9	36	114.59	112.75	123	102
13	10	40	127.32	125.45	135	115
14	15	44	140.06	138.2	152	130
15	16	48	152.79	150.95	160	140
16	17	50	159.15	157.3	170	150
17	14	60	190.99	189.1	200	175

Material and Treatment

Belt Width

Machining Flange
