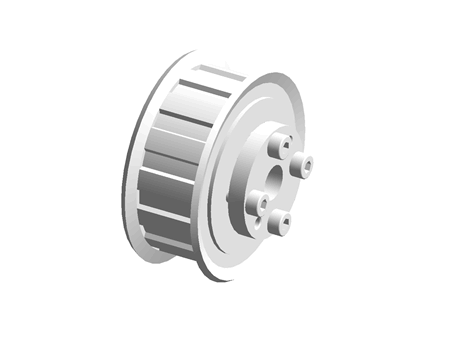

Keyless Synchronous Pulley L Type - E Shape - CBMPLA/CBMPL/CBMPLP_L050/L075/L100/L150

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Keyless Synchronous Pulley L Type - E Shape - CBMPLA14L050-E-8
Part number	CBMPLA14L050-E-8

CAD models

Product selection

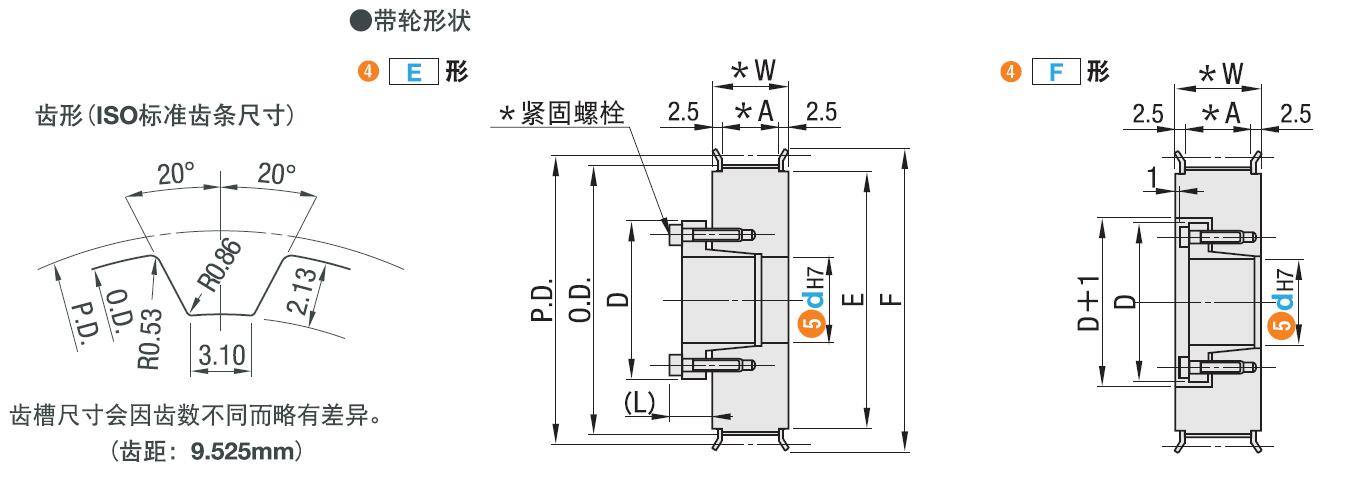

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	14	42.45	41.68	48	35
2	2	15	45.48	44.72	48	35
3	3	16	48.51	47.75	55	40
4	4	17	51.54	50.78	55	40
5	5	18	54.57	53.81	61	45
6	6	19	57.61	56.84	67	50
7	7	20	60.64	59.88	67	50
8	8	21	63.67	62.91	70	56
9	9	22	66.7	65.94	80	60
10	10	24	72.77	72	87	67
11	11	25	75.8	75.04	87	67
12	12	26	78.83	78.07	87	67
13	13	28	84.89	84.13	95	75
14	14	30	90.96	90.2	99	80
15	15	32	97.02	96.26	104	84
16	16	34	103.08	102.32	111	90
17	17	36	109.15	108.39	123	102
18	18	38	115.21	114.45	127	105
19	19	40	121.28	120.51	131	110
20	20	42	127.34	126.58	135	115
21	21	44	133.4	132.64	140	120
22	22	48	145.53	144.77	152	130
23	23	50	151.6	150.83	160	140

Material and Treatment

Belt Width

Machining Flange
