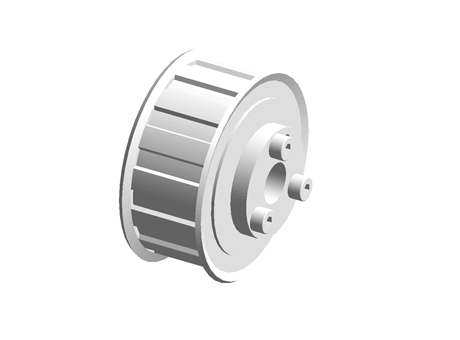

Keyless Synchronous Pulley H Type - E Shape - CBMPLA/CBMPL/CBMPLP_H075/H100/H150/H200

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Keyless Synchronous Pulley H Type - E Shape - CBMPLA14H075-E-12
Part number	CBMPLA14H075-E-12

CAD models

Product selection

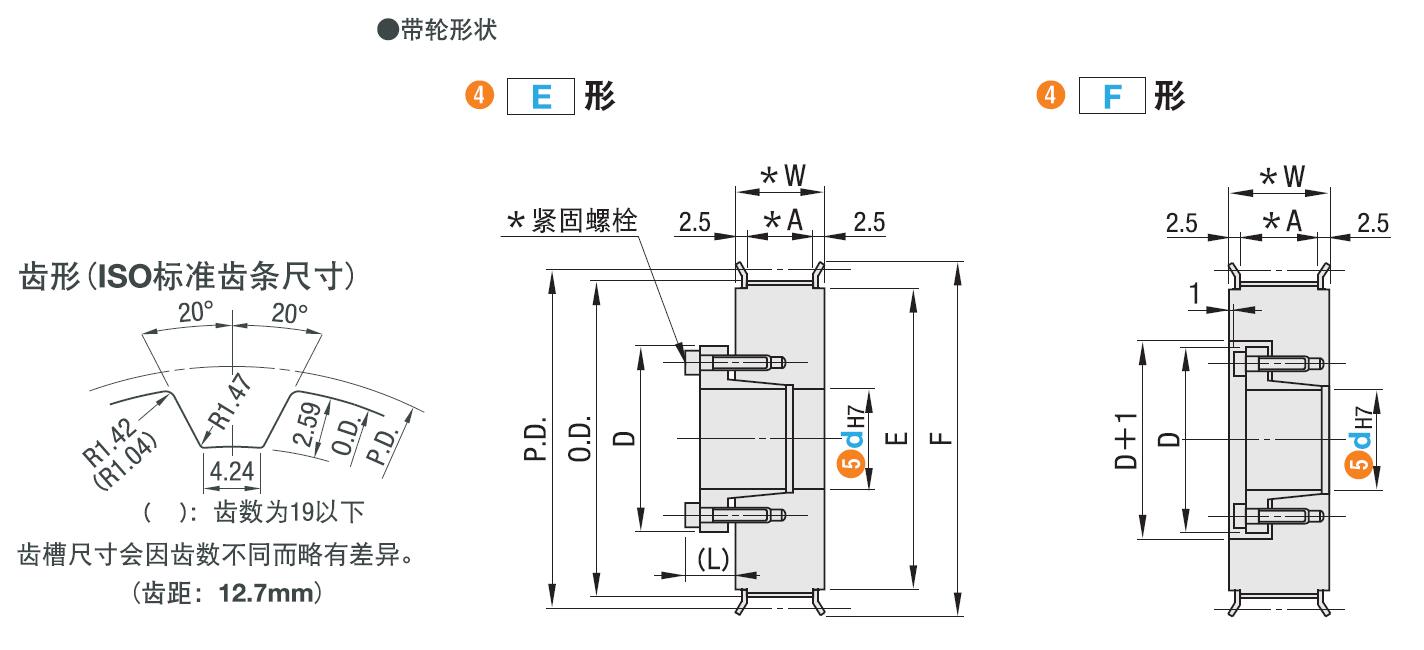

Index	Selector	Tooth Number	P.D.	O.D.	F	E
1	1	14	56.6	55.22	61	45
2	2	15	60.64	57.27	67	50
3	3	16	64.68	63.31	70	56
4	4	17	68.72	67.35	80	60
5	5	18	72.77	71.39	80	60
6	6	19	76.81	75.44	87	67
7	7	20	80.85	79.48	87	67
8	8	21	84.89	83.52	95	75
9	9	22	88.94	87.56	95	75
10	10	24	97.02	95.65	104	84
11	11	25	101.06	99.69	111	90
12	12	26	105.11	103.73	111	90
13	13	28	113.19	111.82	123	102
14	14	30	121.28	119.9	127	105
15	15	32	129.36	127.99	135	115
16	16	34	137.45	136.07	144	125
17	17	36	145.53	144.16	152	130

Material and Treatment

Belt Width

Machining Flange
