Idler for Round Belt-Duplex Type-CDXAC

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Idler for Round Belt-Widened Type- CDXAC15-1.1
Part number	CDXAC15-1.1

CAD models

Product selection

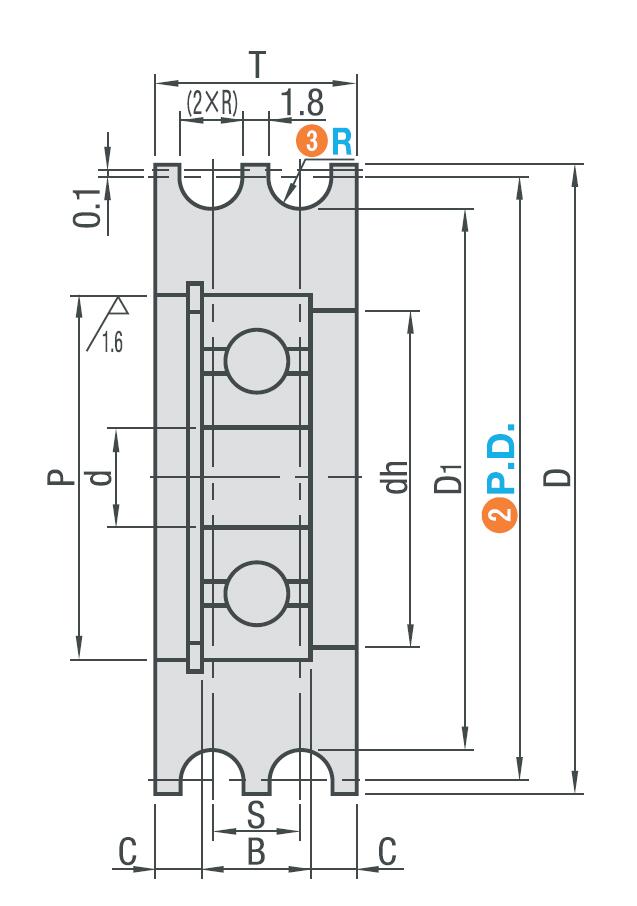

Index	Selector	P.D.	R	S	d	P	dh	T	D	D1	B	No.
1	1	15	1.1	4	3	10	8	9	17	13	4	623ZZ
2	2	20	1.1	4	4	13	11	10	22	18	5	624ZZ
3	3	30	1.1	4	6	19	16	11	32	28	6	626ZZ
4	4	20	1.6	5	4	13	11	11	22	17	5	624ZZ
5	5	30	1.6	5	6	19	16	11	32	27	6	626ZZ
6	6	40	1.6	5	10	26	23	14	42	37	8	6000ZZ
7	7	45	1.6	5	10	26	23	14	47	42	8	6000ZZ
8	8	23	2.1	6	6	15	13	13	25	19	5	696ZZ
9	9	28	2.1	6	6	19	16	13	30	24	6	626ZZ
10	10	30	2.1	6	6	19	16	13	32	26	6	626ZZ
11	11	40	2.1	6	10	26	23	14	42	36	8	6000ZZ
12	12	45	2.1	6	10	26	23	14	47	41	8	6000ZZ
13	13	48	2.1	6	10	26	23	14	50	44	8	6000ZZ
14	14	28	2.6	7	8	19	16	15	30	23	6	698ZZ
15	15	40	2.6	7	10	26	23	16	42	35	8	6000ZZ
16	16	50	2.6	7	12	32	27	16	52	45	10	6001ZZ
17	17	28	3.1	8	6	19	16	17	30	22	6	6201ZZ
18	18	38	3.1	8	10	26	23	18	40	32	8	626ZZ
19	19	48	3.1	8	10	26	23	18	50	42	8	6000ZZ
20	20	50	3.1	8	12	32	27	18	52	44	10	6000ZZ
21	21	60	3.1	8	12	32	27	18	62	54	10	6201ZZ
22	22	75	3.1	8	12	32	27	18	77	69	10	6201ZZ
23	23	100	3.1	8	12	32	27	18	102	94	10	6201ZZ
24	24	50	4.1	10	12	32	27	21	52	42	10	6201ZZ
25	25	60	4.1	10	12	32	27	21	62	52	10	6201ZZ
26	26	100	4.1	10	15	35	30	21	102	92	11	6202ZZ
27	27	60	5.1	12	15	35	30	25	62	50	11	6202ZZ
28	28	100	5.1	12	15	35	30	25	102	90	11	6202ZZ
29	29	140	5.1	12	15	35	30	25	142	130	11	6202ZZ
