Idler for Flat Belt - Arc Type T=110-510 CDFAWT/CDFMWT/CDFSWT

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Idler for Flat Belt - Arc Type T=110-510 CDFAWT30-8-L110-H0.3
Part number	CDFAWT30-8-L110-H0.3

CAD models

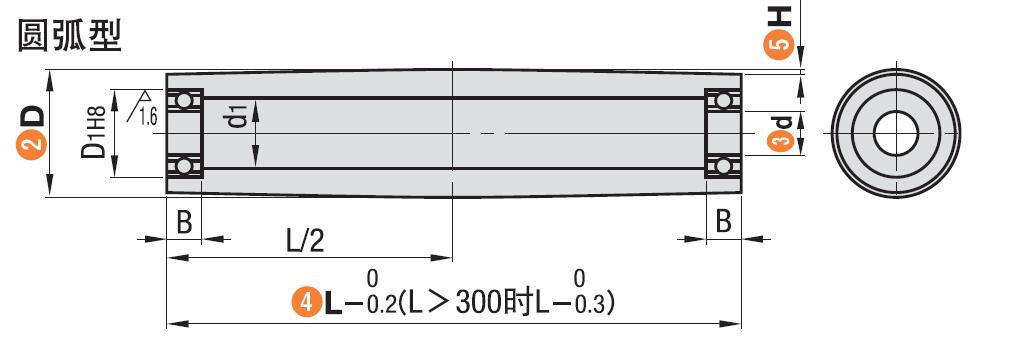

Product selection

Index	Selector	D	d	L	No.	B	D1
1	1	30	8	110～510	698ZZ	6	19
2	2	30	8A	110～510	608ZZ	7	22
3	3	30	10	110～510	6900ZZ	6	22
4	4	30	12	110～510	6901ZZ	6	24
5	5	35	10	110～510	6900ZZ	6	22
6	6	35	12	110～510	6901ZZ	6	24
7	7	35	15	110～510	6902ZZ	7	28
8	8	40	8	110～510	628ZZ	8	24
9	9	40	10	110～510	6000ZZ	8	26
10	10	40	12	110～510	6901ZZ	6	24
11	11	40	15	110～510	6902ZZ	7	28
12	12	40	20	110～510	6804ZZ	7	32
13	13	50	10	110～510	6200ZZ	9	30
14	14	50	12	110～510	6001ZZ	8	28
15	15	50	15	110～510	6902ZZ	7	28
16	16	50	20	110～510	6804ZZ	7	32
17	17	50	25	110～510	6905ZZ	9	32
18	18	60	12	110～510	6201ZZ	10	32
19	19	60	15	110～510	6002ZZ	9	32
20	20	60	20	110～510	6904ZZ	9	37
21	21	60	52	110～510	6905ZZ	9	42
22	22	60	30	110～510	6906ZZ	9	47
23	23	80	25	110～510	6205ZZ	15	52
24	24	80	30	110～510	6006ZZ	13	55
25	25	80	35	110～510	6907ZZ	10	55

Material and Treatment

CDFAWT:Aluminum Alloy, Natural Color Anodizing
