Hinge Pin-Fixed Stop Screw with Shoulder BDHLSG/BDHLSGH/BDPHLSG/BDPHLSGH/BDSHLSG/BDSHLSGH

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

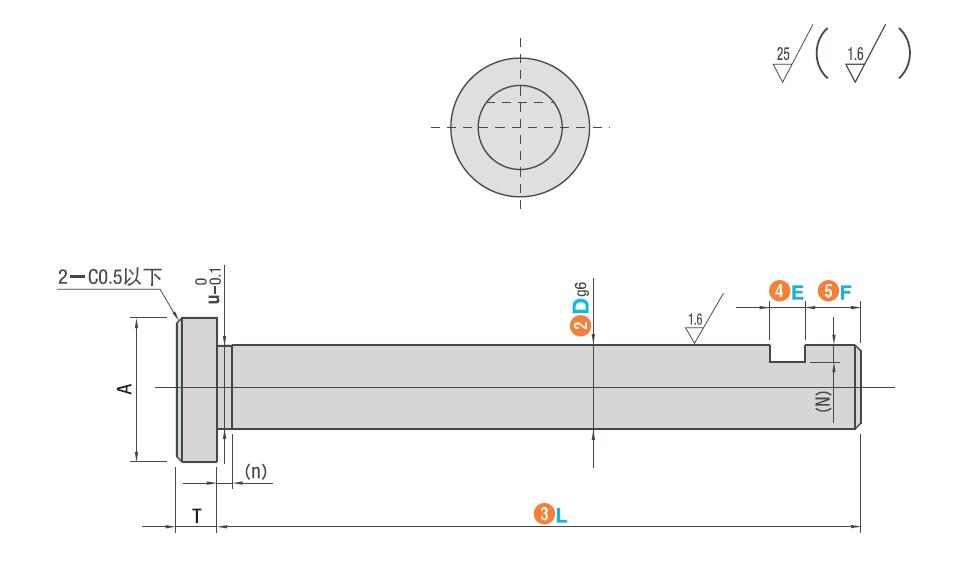

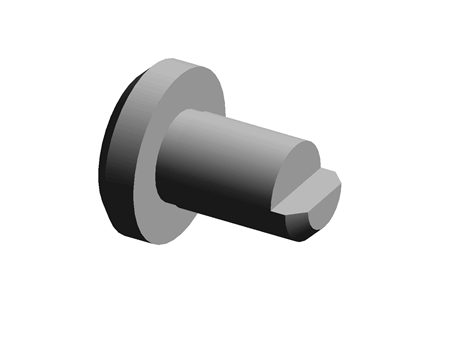

Description	Hinge Pin-Fixed Stop Screw with Shoulder BDHLSG3-5-E1-F0
Part number	BDHLSG3-5-E1-F0

CAD models

Product selection

Index	Selector	D	L	E	A	d	T	N	n
1	1	3	5～50	1～50	5.5	2.9	1.5	1.5	0.5
2	2	4	5～50	1～50	6.5	3.9	1.5	1.5	0.5
3	3	5	10～60	1～50	8	4.9	1.5	1.5	0.5
4	4	6	10～100	1～50	9	5.8	1.5	1.5	1
5	5	8	10～100	1～50	12	7.8	2	1.5	1
6	6	10	15～150	1～50	14	9.8	2	1.5	1
7	8	12	15～150	1～50	17	11.8	3	1.5	1
8	9	15	25～150	1～50	20	14.8	3	1.5	1
9	10	16	30～150	1～50	21	15.8	3	1.5	2
10	7	20	30～150	1～50	26	19.8	4	1.5	2
11	11	25	30～150	1～50	30	24.8	4	1.5	2

Material and Treatment
