High Torque Synchronous Pulley P8M Type - A Type - CBPPA/CBPPK/CBPPM/CBPPP_P8M150/P8M250

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.

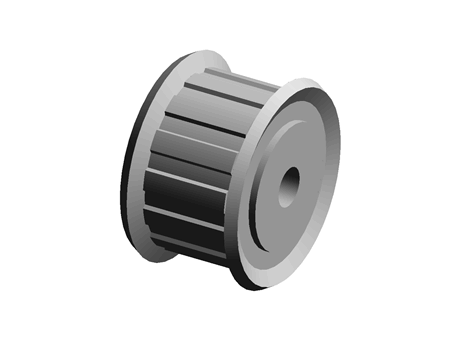

Description	High Torque Synchronous Pulley P8M Type - A Type - CBPPA20P8M150-A-H12
Part number	CBPPA20P8M150-A-H12

CAD models

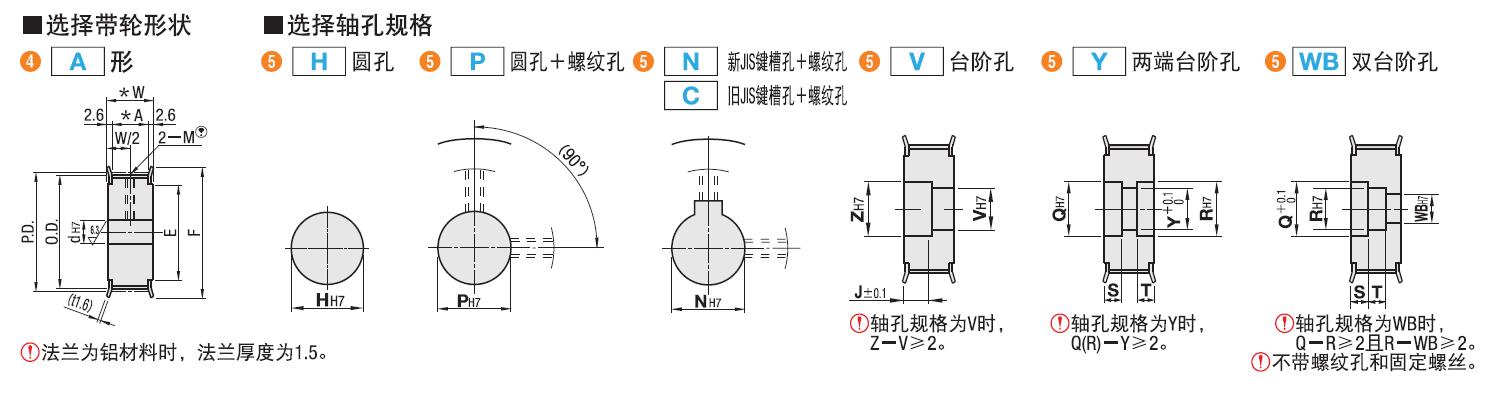

Product selection

Index	Selector	Tooth Number	H	P	N/C	V	Z	J	P.D.	O.D.	F	E
1	1	20	12～27	12～27	12～22	12～19	14～23	3.0≤J≤W-3.0	50.93	49.56	55	40
2	2	22	12～30	12～30	12～25	12～22	14～26	3.0≤J≤W-3.0	56.02	54.65	61	45
3	3	24	12～33	12～33	12～28	12～23	14～28	3.0≤J≤W-3.0	61.12	59.74	67	50
4	4	26	16～35	16～35	16～30	16～25	18～30	3.0≤J≤W-3.0	66.21	64.84	74	58
5	5	28	16～39	16～39	16～34	16～29	18～34	3.0≤J≤W-3.0	71.3	69.93	80	60
6	6	30	16～40	16～40	16～35	16～30	18～35	3.0≤J≤W-3.0	76.39	75.02	83	63
7	7	32	16～43	16～43	16～38	16～33	18～37	3.0≤J≤W-3.0	81.49	80.12	87	67
8	8	34	16～47	16～47	16～42	16～35	18～40	3.0≤J≤W-3.0	86.58	85.21	95	75
9	9	36	16～50	16～50	16～45	16～35	18～43	3.0≤J≤W-3.0	91.67	90.3	99	80
10	10	40	20～55	20～55	20～50	20～35	22～45	3.0≤J≤W-3.0	101.86	100.49	111	90
11	11	44	20～60	20～60	20～50	20～35	22～48	3.0≤J≤W-3.0	112.05	110.67	119	100
12	12	48	20～67	20～67	20～50	20～40	22～55	3.0≤J≤W-3.0	122.23	120.86	127	105
13	13	50	20～67	20～67	20～50	20～40	22～55	3.0≤J≤W-3.0	127.32	125.95	135	115
14	14	60	20～67	20～67	20～50	20～40	22～55	3.0≤J≤W-3.0	152.79	151.42	160	140

Hole

Belt Width

Material and Treatment

Change Stop Screw Angle

Not Available

Machining Flange

Machining Retaining Ring Groove

Not Available

Change Screw Hole Size

Not Available

SRG

TPC

Machining Side Hole

Side Hole Number

Not Available

Q_C/K_C/Z_C
