Gear Idler Wheel with Flange - P5M/P8M - CBAPW/CBBPW

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Gear Idler Wheel with Flange - P5M/P8M - CBBPW25-P5M100-6
Part number	CBBPW25-P5M100-6

CAD models

Request for quotation

Product selection

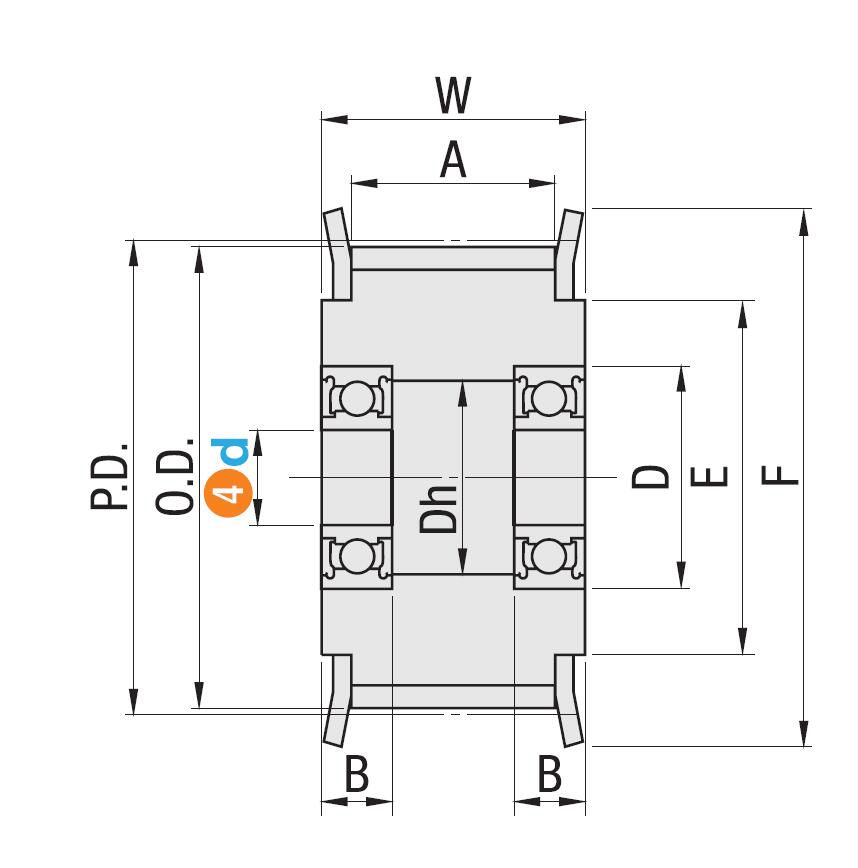

Index	Selector	Tooth Number	Corresponding Belt	d	P.D.	O.D.	F_CBAPW/CBKPW	F_CBBPW	E_CBAPW/CBKPW	E_CBBPW	A	W	Dh	No.	D	B
1	1	25	P5M100	6	39.79	38.65	-	44	-	32	11.6	16	13	696ZZx2	15	5
2	2	25	P5M150	6	39.79	38.65	-	44	-	32	16.6	21	13	696ZZx2	15	5
3	3	25	P5M100	8	39.79	38.65	44	44	32	32	44	32	16.5	698ZZx2	19	6
4	4	25	P5M150	8	39.79	38.65	44	44	32	32	16.6	21	16.5	698ZZx2	19	6
5	5	28	P5M100	10	44.56	43.42	50	50	38	38	11.6	16	19.5	6900ZZx2	22	6
6	6	28	P5M150	10	44.56	43.42	50	50	38	38	16.6	21	19.5	6900ZZx2	22	6
7	7	30	P5M150	12	47.75	46.6	-	55	-	40	16.6	21	24	6001ZZx2	28	8
8	8	36	P5M150	15	57.3	56.15	-	67	-	50	16.6	21	28	6002ZZx2	32	9
9	9	26	P8M150	12	66.21	64.84	74	74	58	58	16.8	22	24	6001ZZx2	28	8
10	11	26	P8M250	12	66.21	59.74	74	74	58	58	27.8	33	24	6001ZZx2	28	8
11	12	30	P8M150	15	76.39	75.02	83	83	63	63	16.8	22	28	6002ZZx2	32	9
12	13	30	P8M250	15	76.39	75.02	83	83	63	63	27.8	33	28	6002ZZx2	32	9
13	10	30	P8M250	20	76.39	75.02	83	83	63	63	27.8	33	36	6004ZZx2	42	12

Material and Treatment

CBBPW:Main Body:S45C;Flange:SPCC;Bearing:Steel;Treatment:Blackening
